Introduction

Here I use QCed results from an ELISA plate. All hair samples were obtained from the same person. I tested 3 variables:

dilution (60 uL vs 250 uL, coded as 0 and 1, respectively)
weight (11 to 37.1 mg)
spike (25 uL stock solution (1:10) added to some wells, coded as 0 and 1, meaning not-spiked and spiked)

I removed the samples that have a Coef of variation higher than 15%.

Summary of results

The figures below were used to decide that the optimal parameters are:

Weight higher than 20, ideally. Binding deviation goes down with higher weight.
Dilution between 60 and 250 ul (higher dilution provides lower coef. of variation, more lower dilutions locate samples closer to 50% binding. An intermedieate value would be best)
Spike Non-spiked samples provide lower binding deviation from 50% (i.e. measures are close to falling outside the curve)

# Loading data
data <- read.csv("./data/Test3/Data_QC_filtered.csv")
std <- read.csv("./data/Test3/Standard_data_test3.csv")


#Inclusion of standard readings in plot
data1 <- data[,c("Wells","Binding.Perc", "Ave_Conc_pg.ml", "Weight_mg", "Buffer_nl", "Spike", "Sample")]
std1 <- std[,c("Wells", "Binding.Perc", "Backfit")]
#std1$Binding.Perc <- std1$Binding.Perc*100
std1$Spike <- 2
std1$Buffer_nl <- 250
std1$Weight_mg <- 20
colnames(std1)[3]<- c("Ave_Conc_pg.ml")

data_std <- plyr::join(data1, std1, type = "full")

Joining by: Wells, Binding.Perc, Ave_Conc_pg.ml, Weight_mg, Buffer_nl, Spike

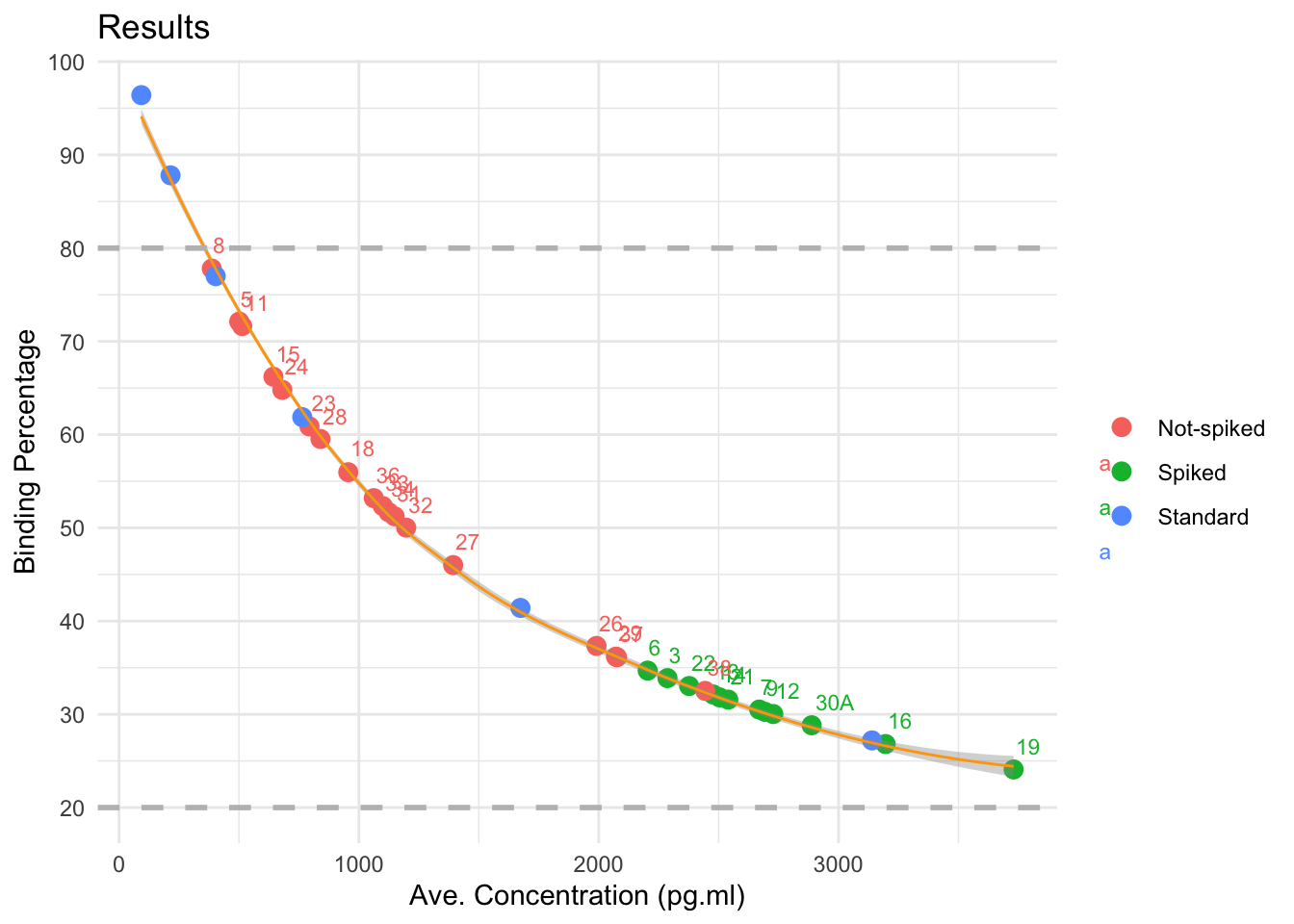

# Scatter plot of Binding Percentage vs Weight

ggplot(data_std, aes(x = Ave_Conc_pg.ml,
                 y = Binding.Perc, color = factor((Spike)))) +
  geom_jitter(size = 3, width = 0.4) +
  geom_smooth(linewidth = 0.5, color = "orange") +  # Add a trend line
  geom_hline(yintercept = 80, linetype = "dashed",
             color = "gray", linewidth = 1) +
  geom_hline(yintercept = 20, linetype = "dashed",
             color = "gray", linewidth = 1) +  # Add horizontal line
  geom_text(aes(label = Sample), size = 3, vjust = -1, hjust = -0.1) +
  labs(title = "Results",
       x = "Ave. Concentration (pg.ml)", y = "Binding Percentage") +
  scale_y_continuous(n.breaks = 10) +
  scale_color_discrete(name = "", labels = c("Not-spiked","Spiked", "Standard")) +
  theme_minimal()

`geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Version	Author	Date
16ce91c	Paloma	2025-04-10
e97ccaf	Paloma	2025-04-01

# Scatter plot of Binding Percentage vs Weight

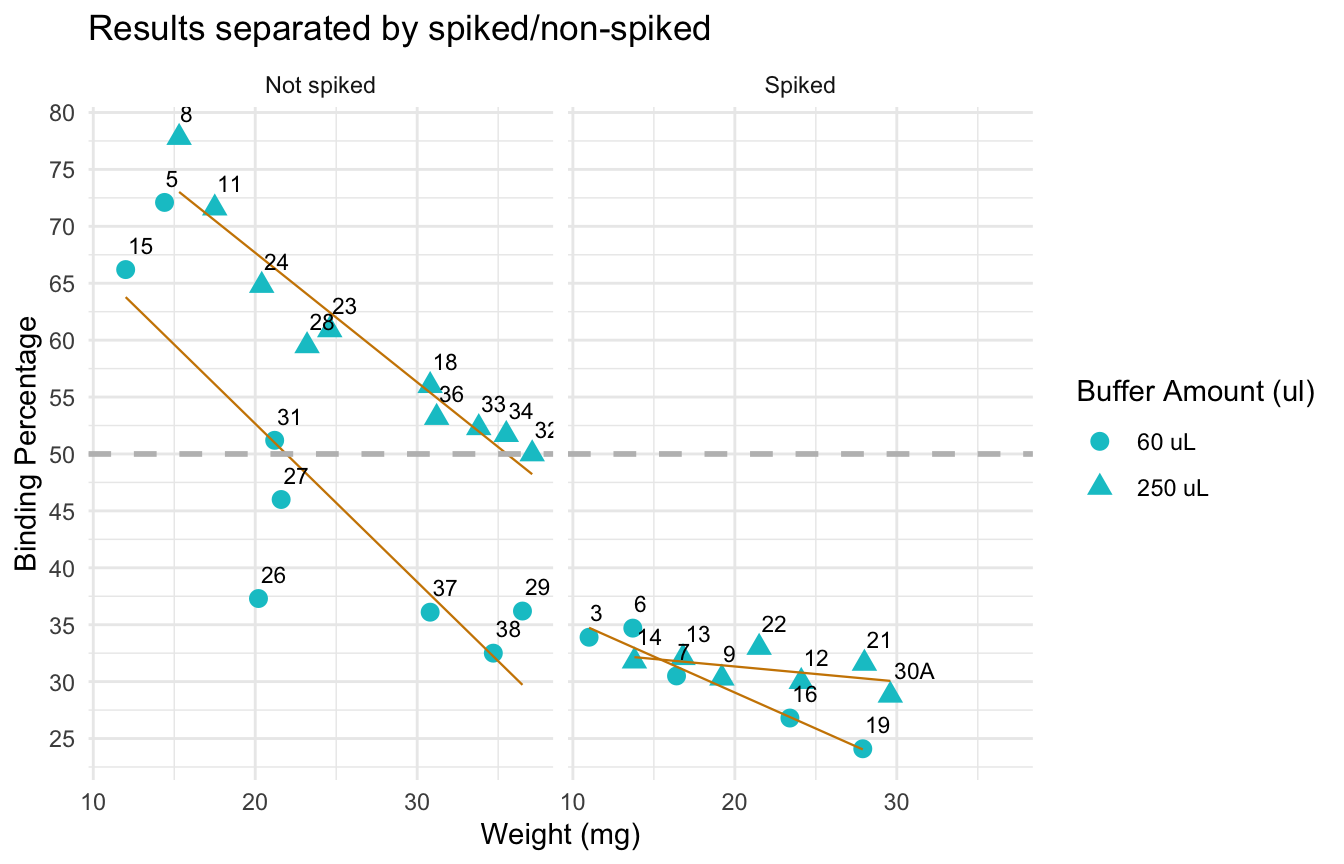

ggplot(data, aes(x = Weight_mg,
                 y = Binding.Perc,
                 shape = factor(Buffer_nl))) +
  geom_point(size = 3, color = "turquoise3") +
  geom_smooth(method = "lm", se = FALSE, linewidth = 0.4, color = "orange3") +  # Add a trend line
  geom_hline(yintercept = 50, linetype = "dashed",
             color = "gray", linewidth = 1) +  # Add horizontal line
  labs(title = "Results separated by spiked/non-spiked",
       x = "Weight (mg)", y = "Binding Percentage",
       shape = "Buffer Amount (ul)") +
  geom_text(aes(label = Sample), size = 3, vjust = -1, hjust = -0.1) +
  scale_y_continuous(n.breaks = 10) +
  scale_shape_discrete(labels = c("60 uL", "250 uL")) +
  facet_grid( ~ Spike, labeller = as_labeller(c("0" = "Not spiked", "1" = "Spiked"))) +
  theme_minimal()

Version	Author	Date
16ce91c	Paloma	2025-04-10
e97ccaf	Paloma	2025-04-01

Here we see the effect of the spike more clearly: adding a spike may not be necessary unless we have very small samples.

The following plots were made considering that having a binding of 50% is ideal. Data points that are over 80% or under 20% are not within the curve, and predictions are less accurate.

Binding percentages

Binding percentage by different variables

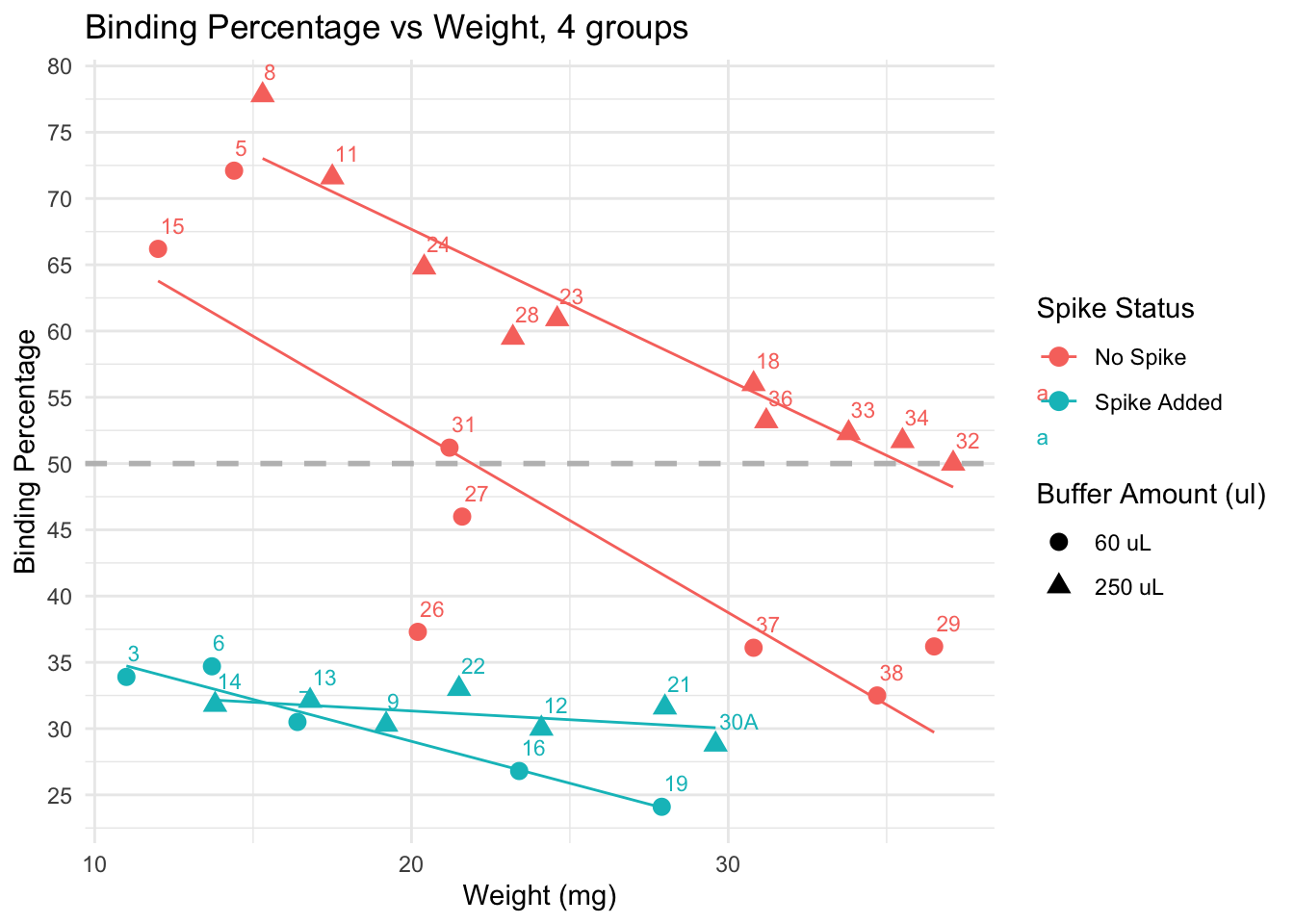

# Scatter plot of Binding Percentage vs Weight, 4 groups

ggplot(data, aes(x = Weight_mg,
                 y = Binding.Perc,
                 color = factor(Spike),
                 shape = factor(Buffer_nl))) +
  geom_point(size = 3) +
  geom_smooth(method = "lm", se = FALSE, linewidth = 0.5) +  # Add a trend line
  geom_hline(yintercept = 50, linetype = "dashed",
             color = "gray", linewidth = 1) +  # Add horizontal line
  labs(title = "Binding Percentage vs Weight, 4 groups",
       x = "Weight (mg)",
       y = "Binding Percentage",
       color = "Spike Status",
       shape = "Buffer Amount (ul)") +
  scale_y_continuous(n.breaks = 10) +
    geom_text(aes(label = Sample), size = 3, vjust = -1, hjust = -0.1) +
  theme_minimal() +
  # Change the labels in the legend using labs
  scale_color_discrete(labels = c("No Spike", "Spike Added")) +  # Change color legend labels
  scale_shape_discrete(labels = c("60 uL", "250 uL"))

Version	Author	Date
16ce91c	Paloma	2025-04-10
e97ccaf	Paloma	2025-04-01

Spiked samples (turquoise) have lower binding, because they have higher levels of cortisol than non spiked (pink) samples.
Dilution: effect is less clear. We see samples with both 60 uL and 250 uL binding at very high and very low levels.
Trends: within non-spiked samples with a similar weight and diluted at 60uL (pink circles), we do not obtain consistent binding percentages. However, non-spiked samples with similar weights do obtain similar bindings, and the lines are in the expected direction (higher weight, lower binding), except by a few outliers that would be removed from the analysis anyway (for having binding over 80%)
Conclusion: samples across different weights, non-spiked, and diluted in 250 uL buffer seem to provide the best results, particularly if samples weigh more than 15 mg. Using less than that may be risky, and in those cases, it may be better to use less buffer to concentrate the samples a bit more.

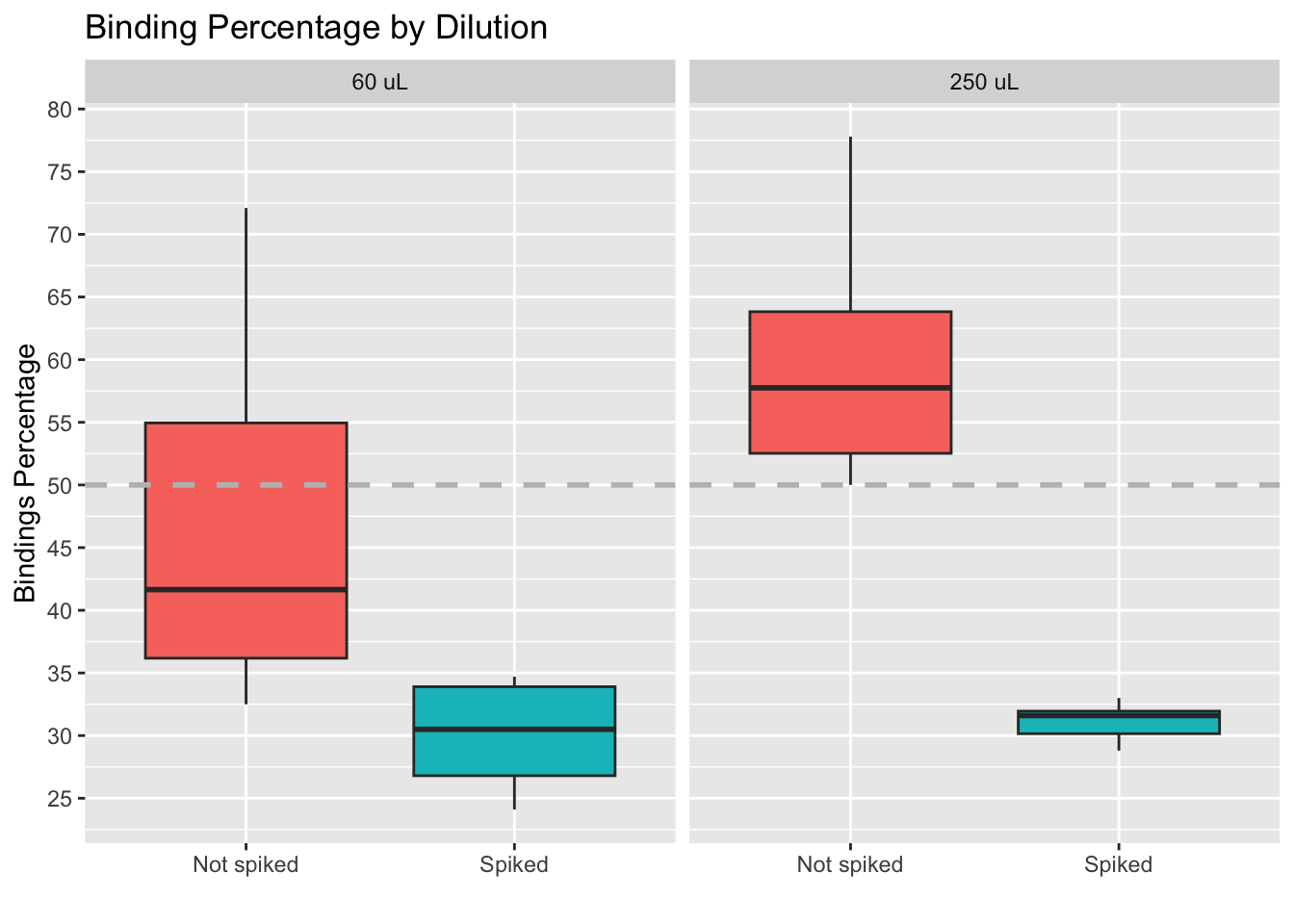

Value distributions by group (boxplots)

## Boxplot of Binding Percentage by dilution

ggplot(data, aes(x = factor(Spike),
                 y = Binding.Perc,
                 fill = factor(Spike))) +
  geom_boxplot() +
  geom_hline(yintercept = 50, linetype = "dashed",
             color = "gray", linewidth = 1) +
  labs(title = "Binding Percentage by Dilution",
       x = "",
       y = "Bindings Percentage") +
  scale_y_continuous(n.breaks = 10) +
  theme(legend.position = "none") +
  facet_wrap(~ Buffer_nl,
             labeller = as_labeller(c("60" = "60 uL",
                                      "250" = "250 uL"))) +
    scale_x_discrete(labels = c("Not spiked", "Spiked"))

Version	Author	Date
e97ccaf	Paloma	2025-04-01

Here we also see that the impact of the spike on the values is larger than the impact of using a different dilution

Coef. of variation percentage

The coefficient of variation or CV is a standardized measure of the difference between duplicates (same sample, same weight, same dilution, same everything). Some variables may make duplicates more variable, so this is what will be tested below.

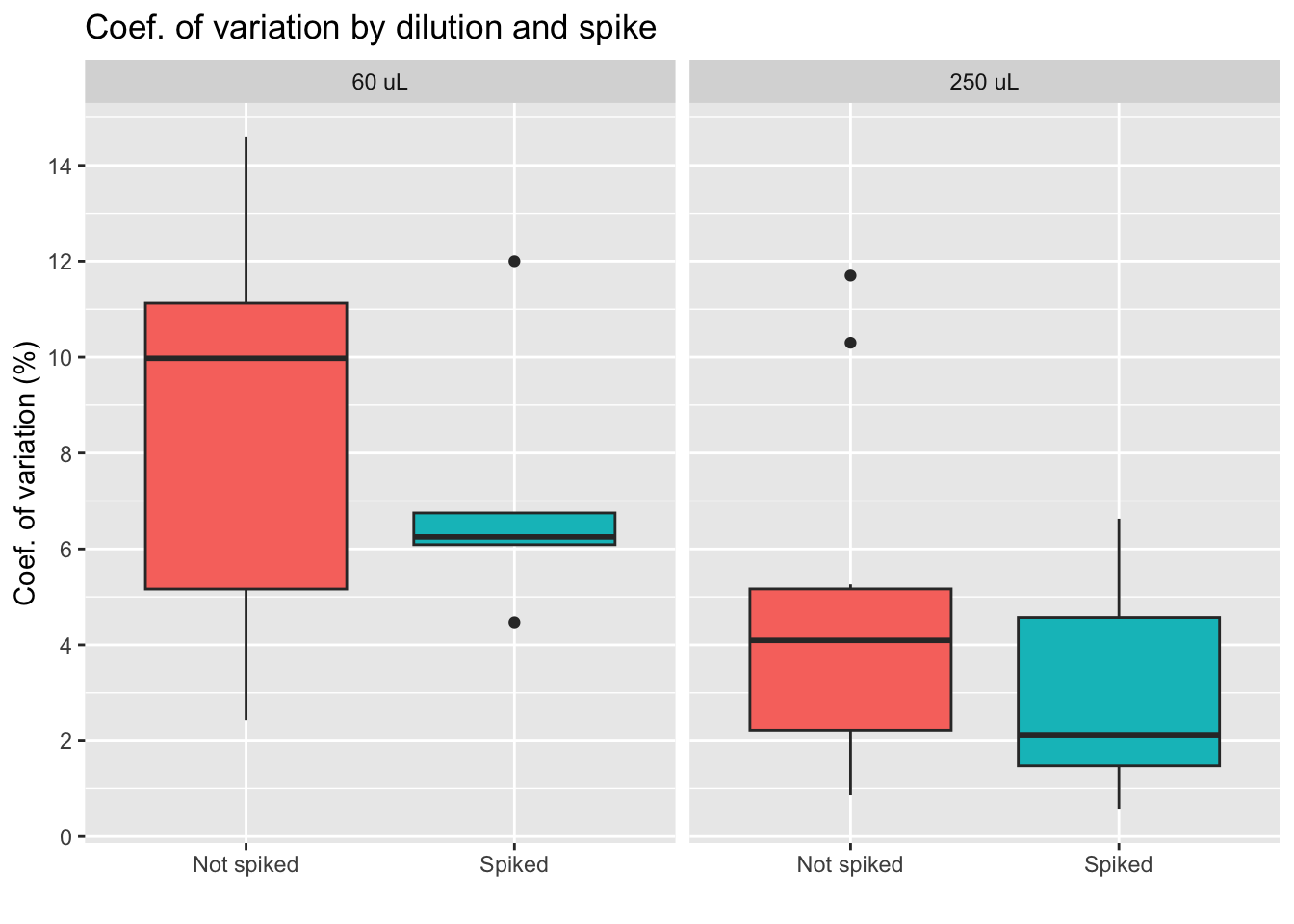

Coef. of variation by group

Version	Author	Date
e97ccaf	Paloma	2025-04-01

Conclusion diluting the sample less seems to lead to higher differences between duplicates, which is something we want to avoid. We also see less variation for the group of spiked samples, with the lowest average of the four groups. Yet, we also must note that the spiked, 250 uL group has only 6 samples, as we see on the table below.

Dilution:	No spike	Spiked
60 uL	7	7
250 uL	12	6
Total: 32 samples

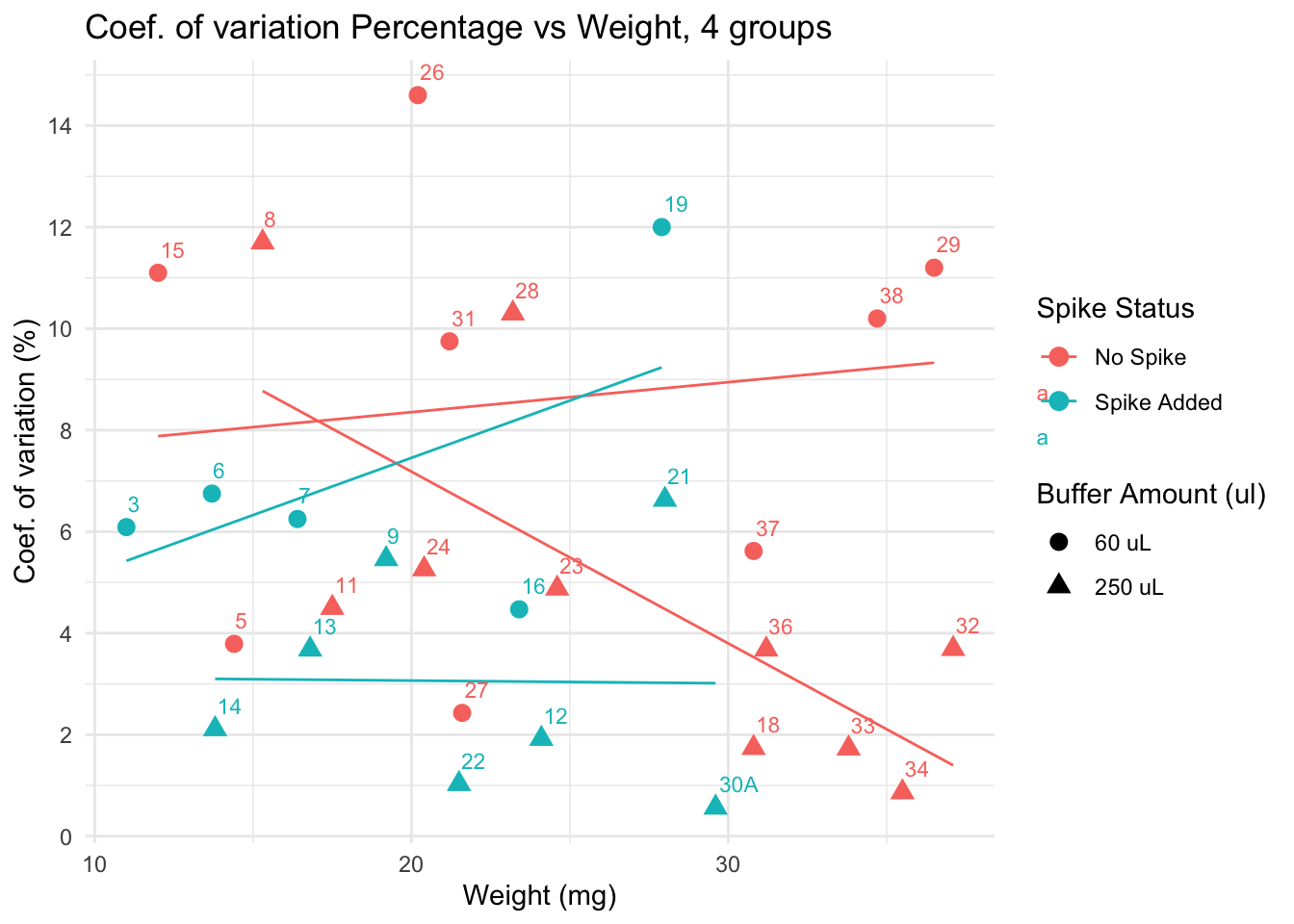

Coef. of variation by different variables

Version	Author	Date
16ce91c	Paloma	2025-04-10
e97ccaf	Paloma	2025-04-01

Lower CV is seen in spiked + 250 uL group, particularly for samples with low weight. Yet, non spiked, diluted in 250uL samples have very low CV if weight is over 30.

Deviation from 50% binding

Here I calculate a “binding” deviation score, to have a better idea of the “distance” between the values obtained and what I should aim for: 50% binding. Here an example of how this score works:

	Sample	Binding.Perc	Binding_deviation
20	32	50.0	0.0
19	31	51.2	1.2
22	34	51.7	1.7
21	33	52.3	2.3
23	36	53.2	3.2
14	27	46.0	4.0

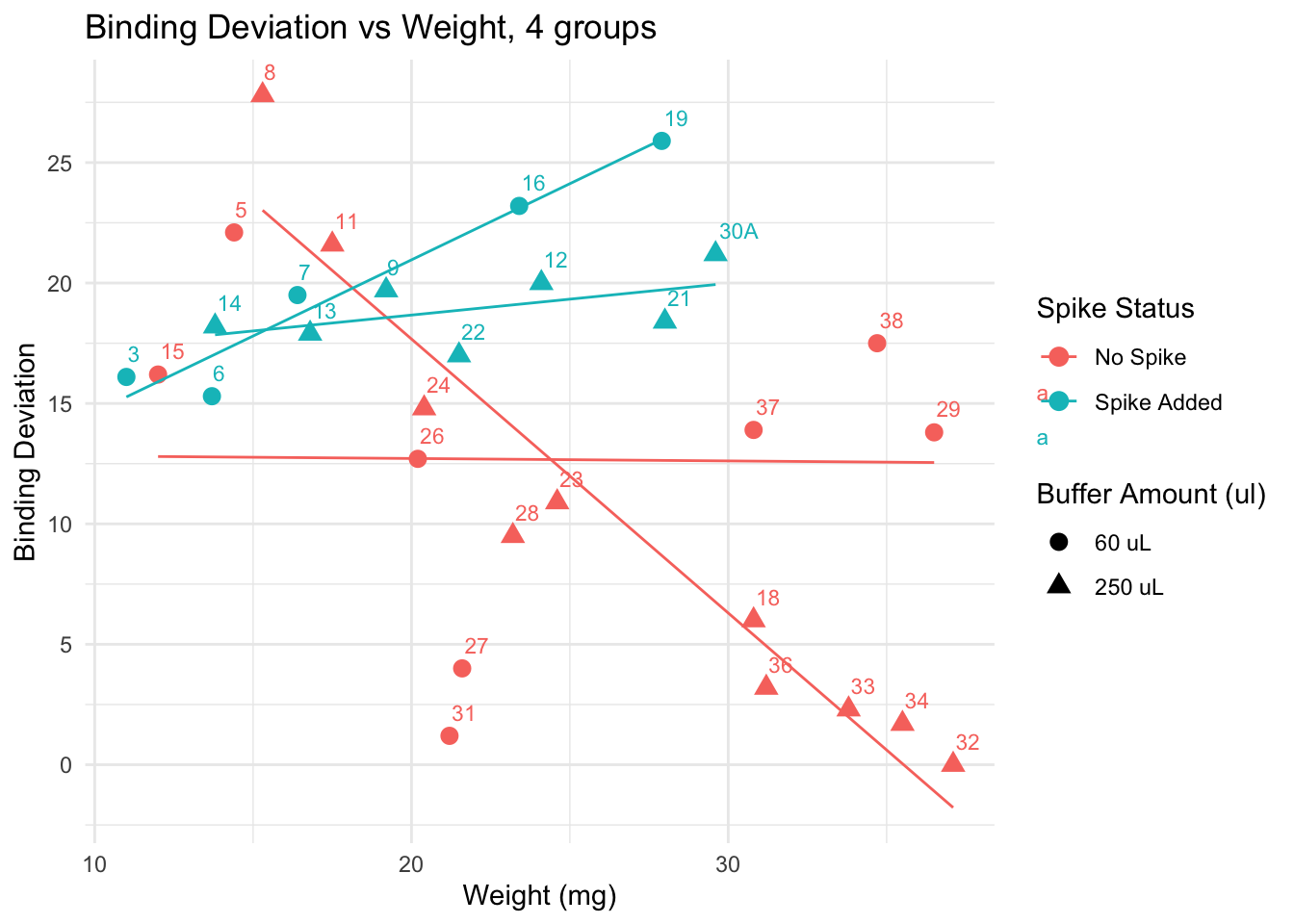

# Scatter plot of Binding Deviation vs Weight, 4 groups

ggplot(data, aes(x = Weight_mg,
                 y = Binding_deviation,
                 color = factor(Spike),
                 shape = factor(Buffer_nl))) +
  geom_point(size = 3) +
  geom_smooth(method = "lm", se = FALSE, linewidth = 0.5) +
  labs(title = "Binding Deviation vs Weight, 4 groups",
       x = "Weight (mg)",
       y = "Binding Deviation",
       color = "Spike Status",
       shape = "Buffer Amount (ul)") +
    geom_text(aes(label = Sample), size = 3, vjust = -1, hjust = -0.1) +
  scale_y_continuous(n.breaks = 10) +
  theme_minimal() +
  # Change the labels in the legend using labs
  scale_color_discrete(labels = c("No Spike", "Spike Added")) +  # Change color legend labels
  scale_shape_discrete(labels = c("60 uL", "250 uL"))

Version	Author	Date
16ce91c	Paloma	2025-04-10
e97ccaf	Paloma	2025-04-01

This plot suggests that for samples of weight lower than 20 mg, adding a spike lowers the binding deviation. This effect is lost if samples are heaver than 20 mg.

Version	Author	Date
16ce91c	Paloma	2025-04-10
e97ccaf	Paloma	2025-04-01

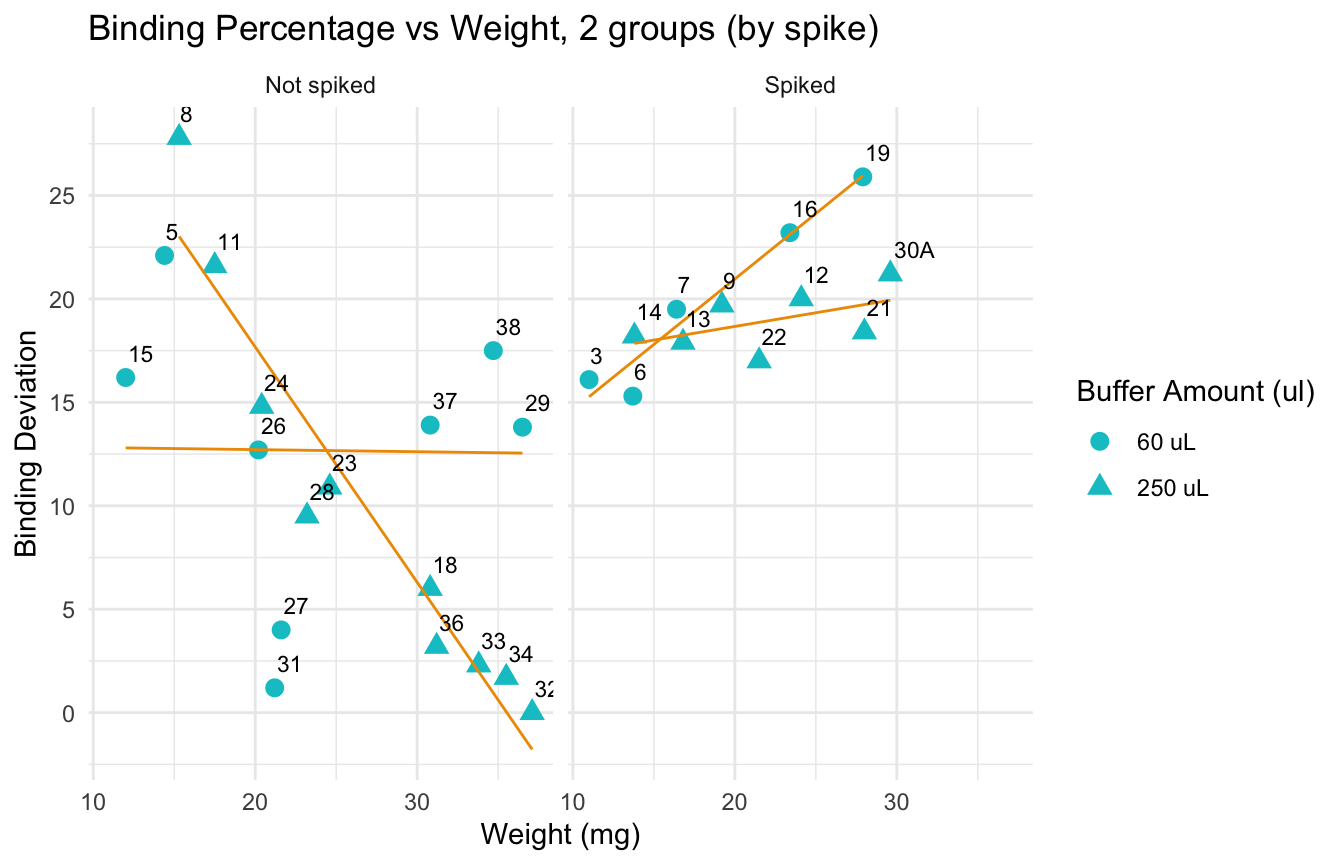

We observe that spiked samples have a higher deviation from the ideal binding. We also observe that having larger samples leads to values closer to 50%. It is interesting to see that error does not go below 15% if we look at samples with weight under 20mg. Yet, we know that a deviation of up to 30% is acceptable.

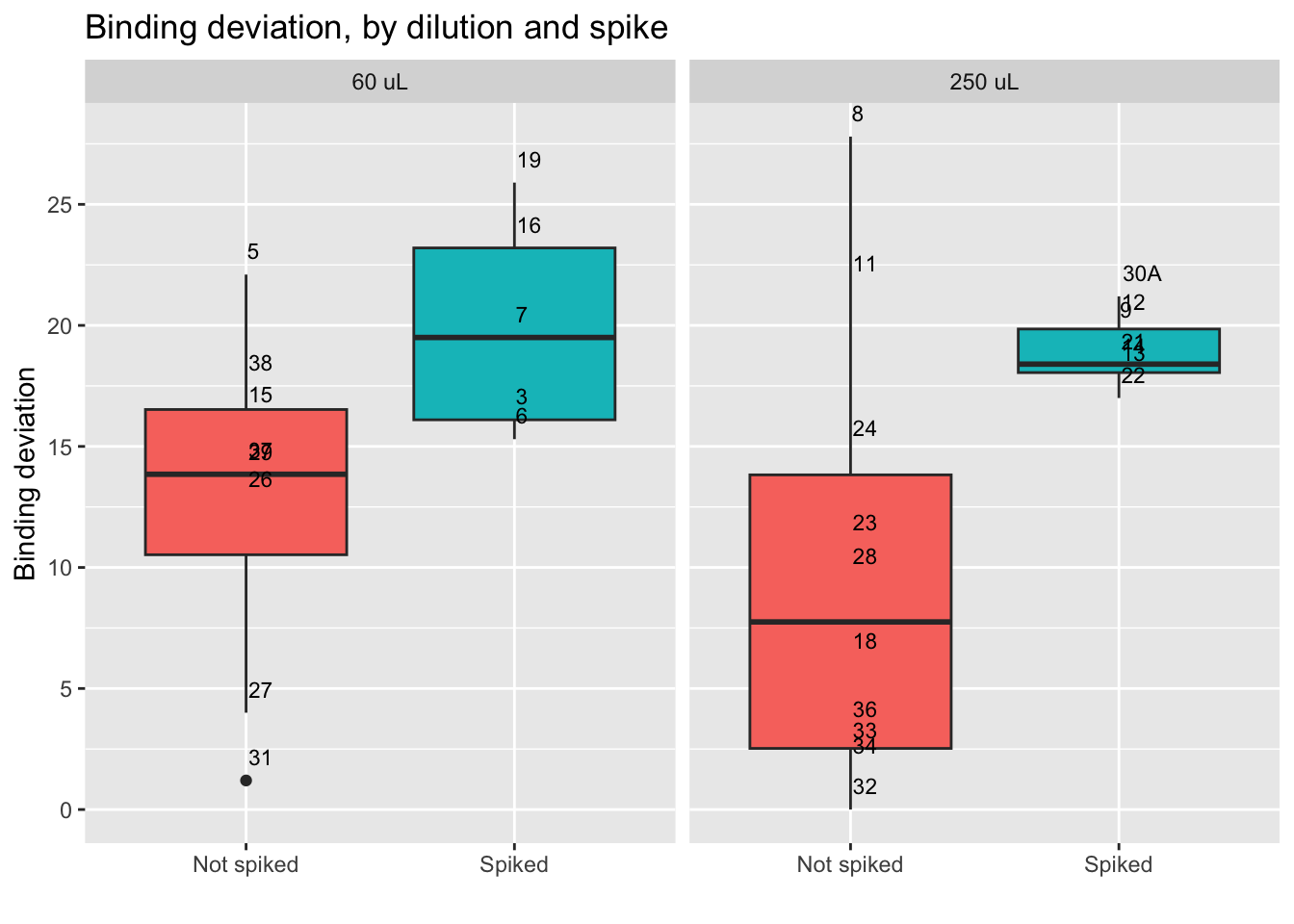

ggplot(data, aes(x = factor(Spike),
                 y = Binding_deviation,
                 fill = factor(Spike))) +
  geom_boxplot() +
  labs(title = "Binding deviation, by dilution and spike",
       x = "",
       y = "Binding deviation") +
  scale_y_continuous(n.breaks = 10) +
  theme(legend.position = "none") +
    geom_text(aes(label = Sample), size = 3, vjust = -1, hjust = -0.1) +
  facet_wrap(~ Buffer_nl,
                labeller = as_labeller(c("60" = "60 uL",
                                      "250" = "250 uL")))  +
    scale_x_discrete(labels = c("Not spiked", "Spiked"))

Version	Author	Date
16ce91c	Paloma	2025-04-10
e97ccaf	Paloma	2025-04-01

Here we see how the lowest (best) scores are obtained by the non-spiked groups. Even better results are obtained if the dilution is 250 uL.

Conclusion: using a 250 uL dilution, without spikes, will lead to better results that fall in the middle of the curve, and allow for more precise calculations of cortisol concentration.

Analysis: linear models

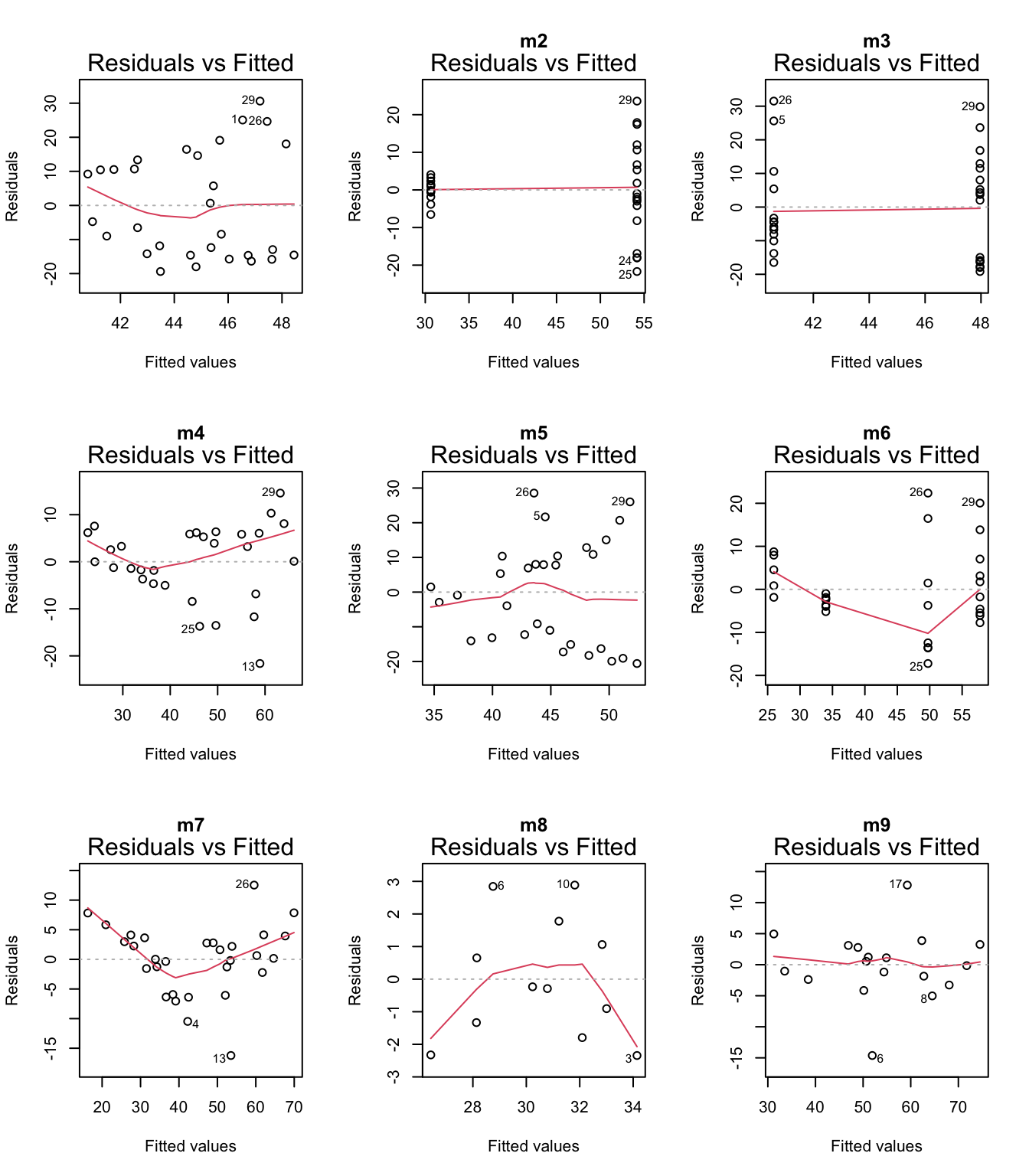

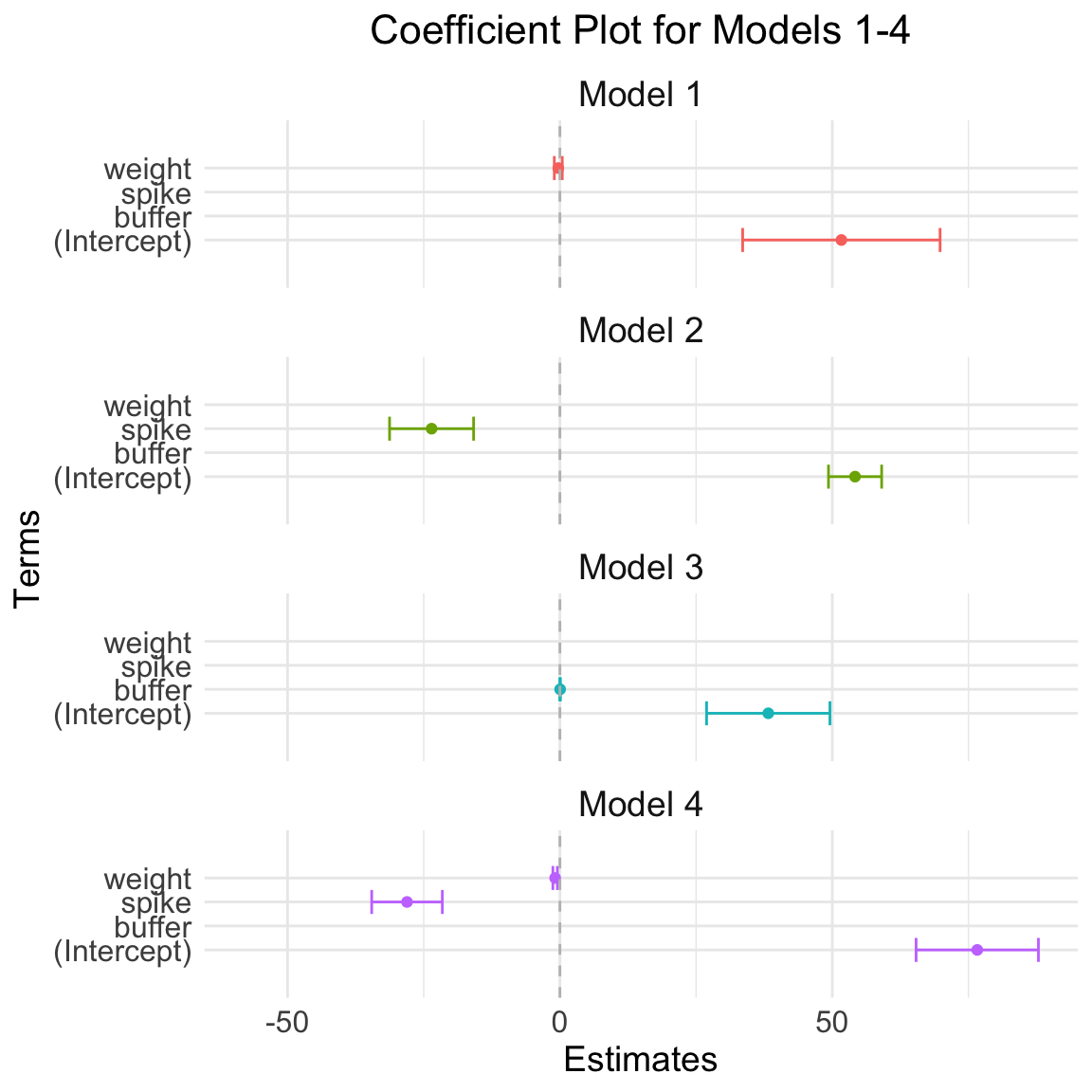

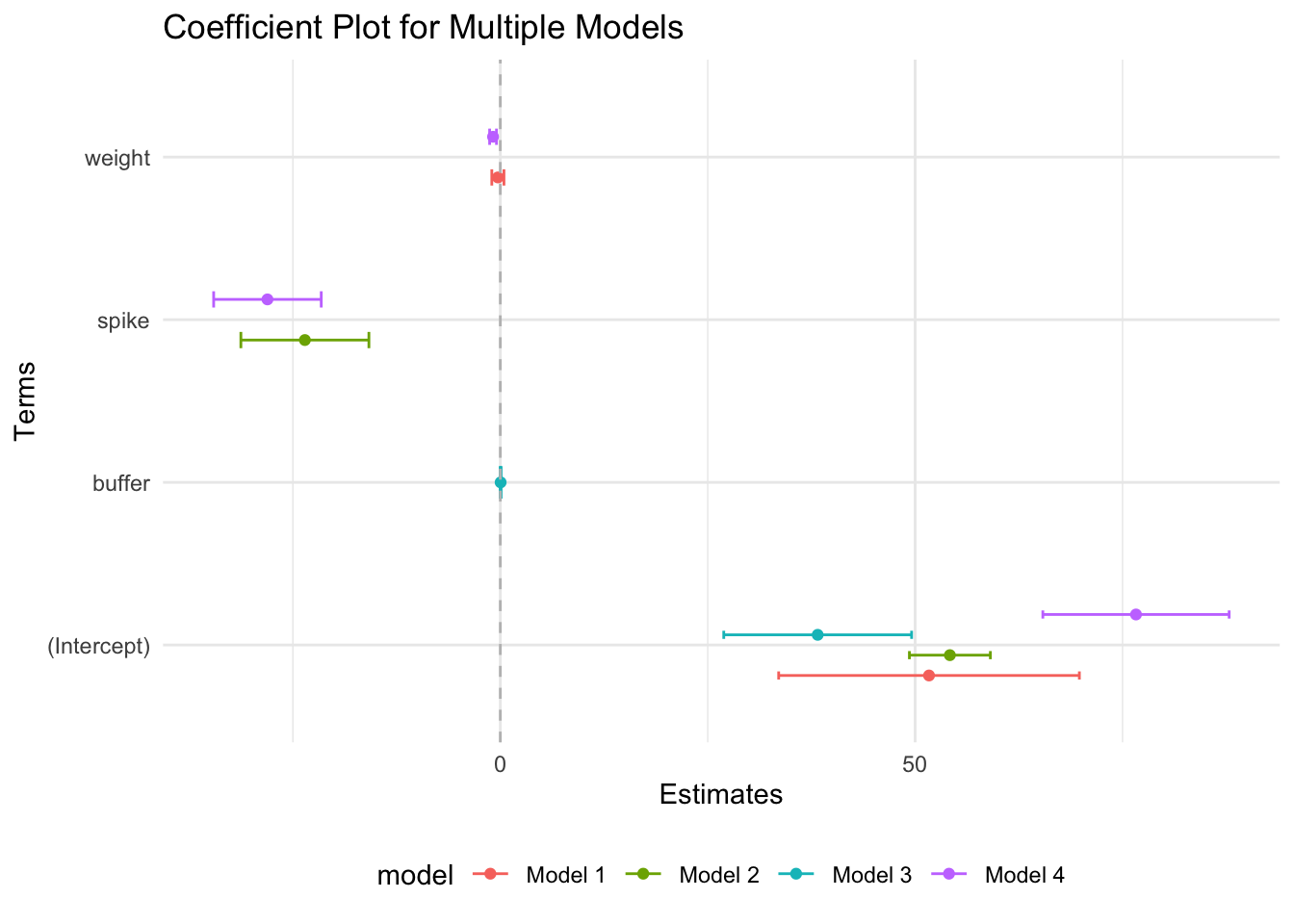

To explore the effects of each variable more systematically, I run multiple models and compared them using AIC Akakikes’ coefficient.

weight <- data$Weight_mg
binding <- data$Binding.Perc
x <- mean(binding)

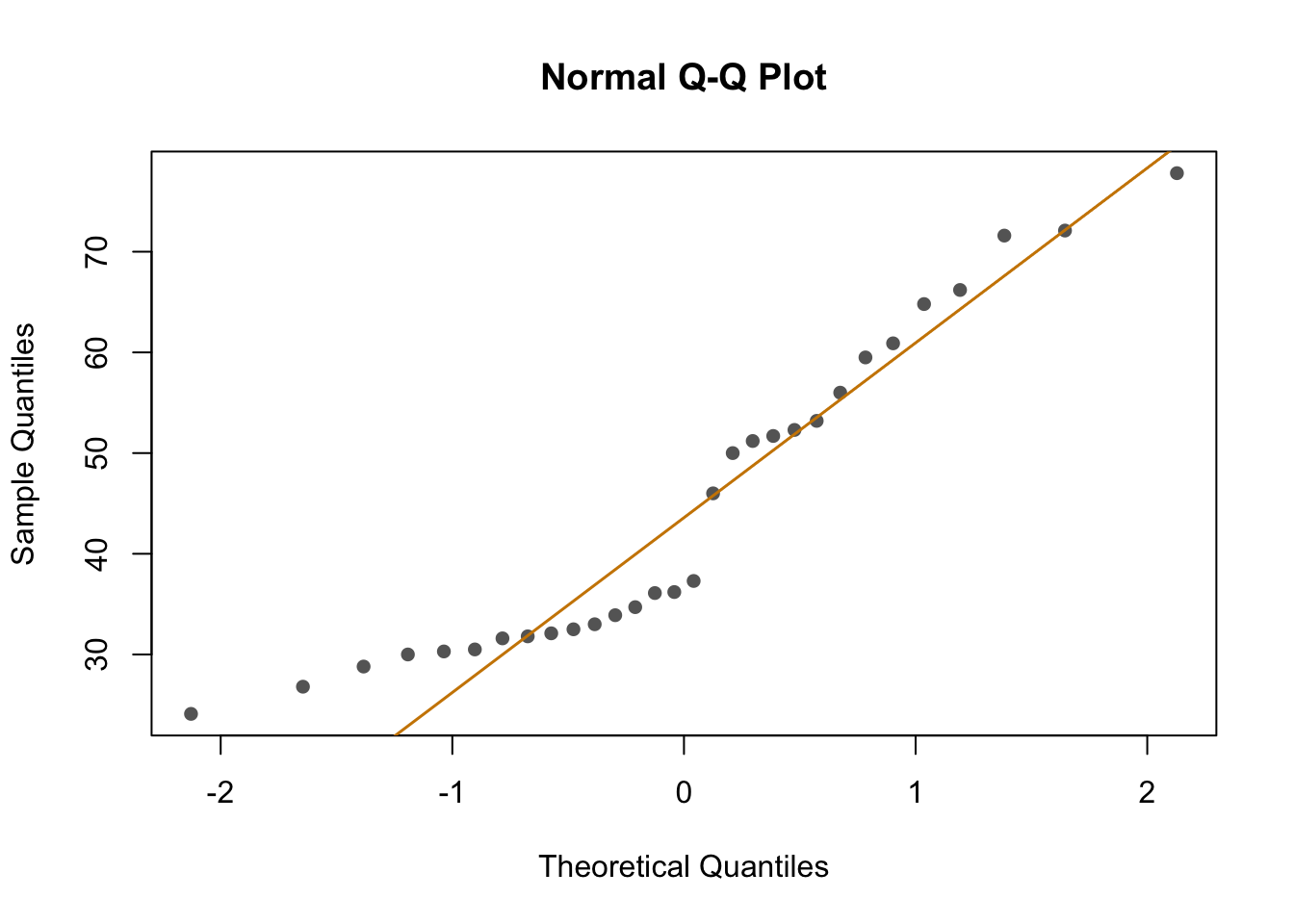

# Q-Q Plot
qqnorm(binding, pch = 16, col = "gray40")
qqline(binding, col = "orange3", lwd = 1.5)

Version	Author	Date
e97ccaf	Paloma	2025-04-01

First, I looked at the distribution of the data (binding percentage). I am not sure how to describe it, but it does not look very linear. I will test different distributions at another time, but for now, I will run and compare simple models that should allow me to understand which variables have a greater impact on binding percentages.

mod <- lm(binding ~ weight)
summary(mod)


Call:
lm(formula = binding ~ weight)

Residuals:
   Min     1Q Median     3Q    Max
-19.39 -14.46  -5.65  12.69  30.62

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  51.6739     9.2460   5.589 5.56e-06 ***
weight       -0.2934     0.3732  -0.786    0.438
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 15.77 on 28 degrees of freedom
Multiple R-squared:  0.0216,    Adjusted R-squared:  -0.01335
F-statistic: 0.618 on 1 and 28 DF,  p-value: 0.4384

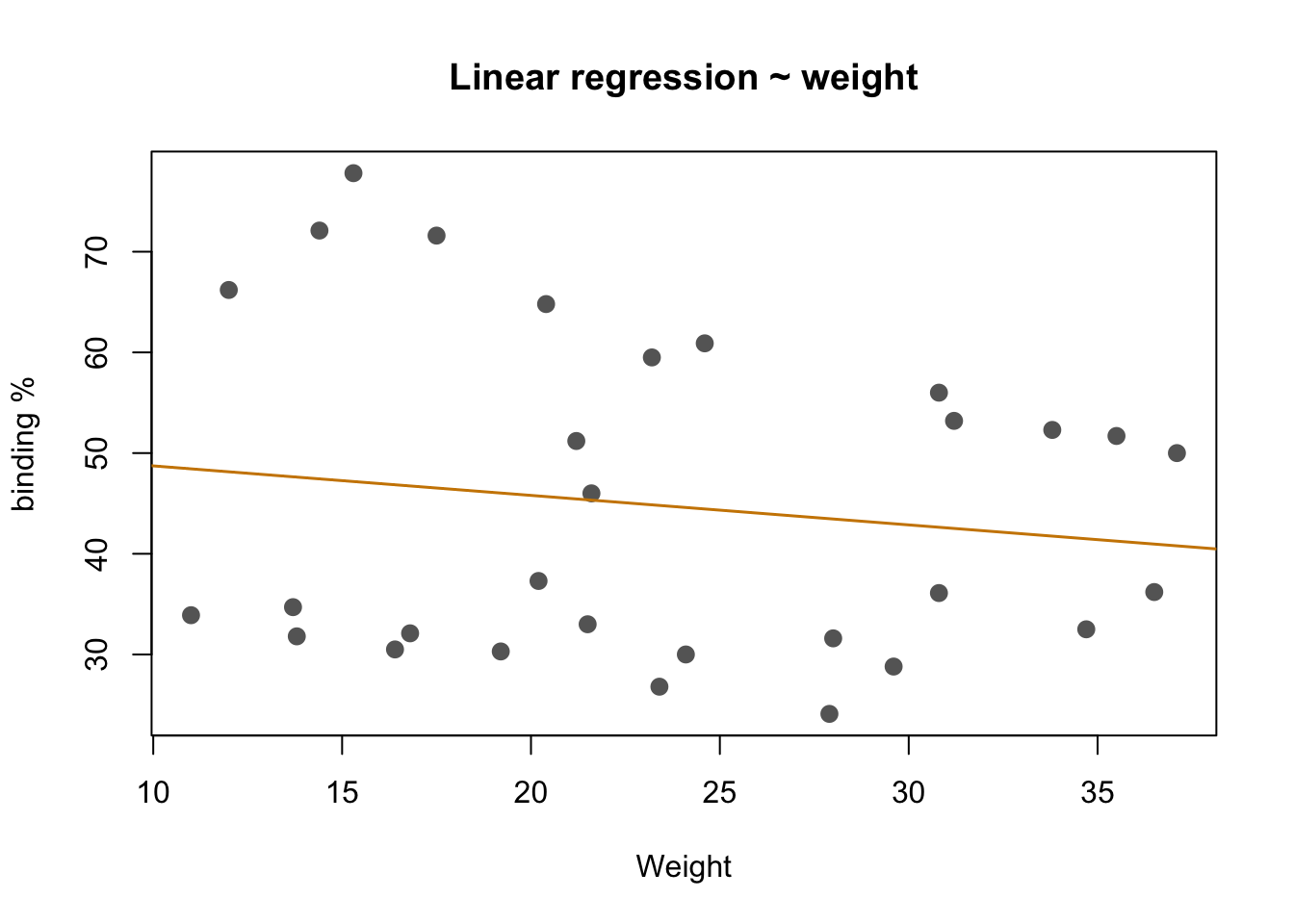

plot(weight, binding,
     main = "Linear regression ~ weight",
     xlab = "Weight",
     ylab = "binding %",
     pch = 16,
     cex = 1.3,
     col = "gray40")

abline(mod, col = "orange3", lwd = 1.5)

Version	Author	Date
e97ccaf	Paloma	2025-04-01

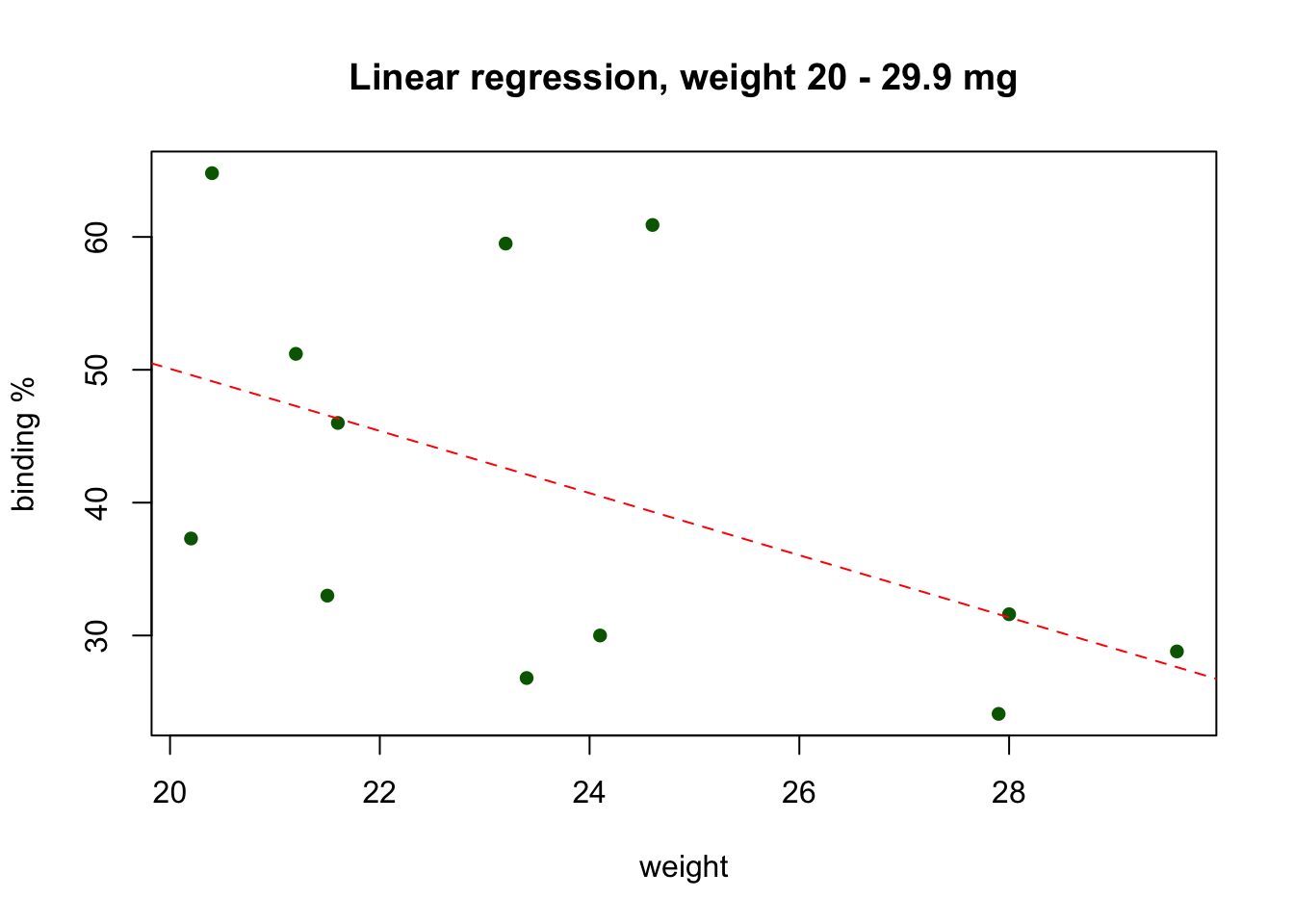

# filter by weight (20-29.9 mg)
d<- data[c(data$Weight_mg >= 20 & data$Weight_mg <= 29.9), ]
weight <- d$Weight_mg
binding <- d$Binding.Perc

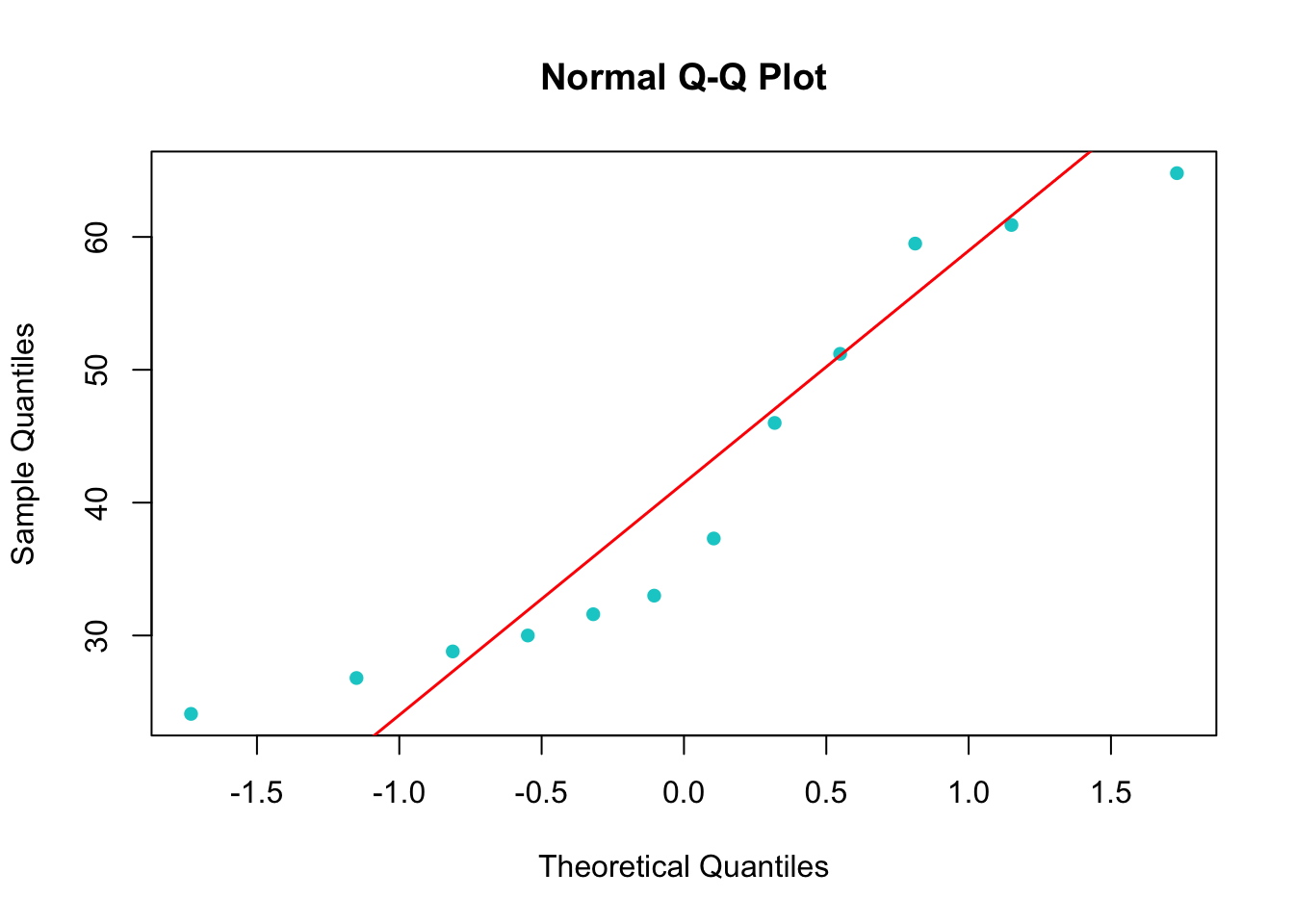

# Q-Q Plot

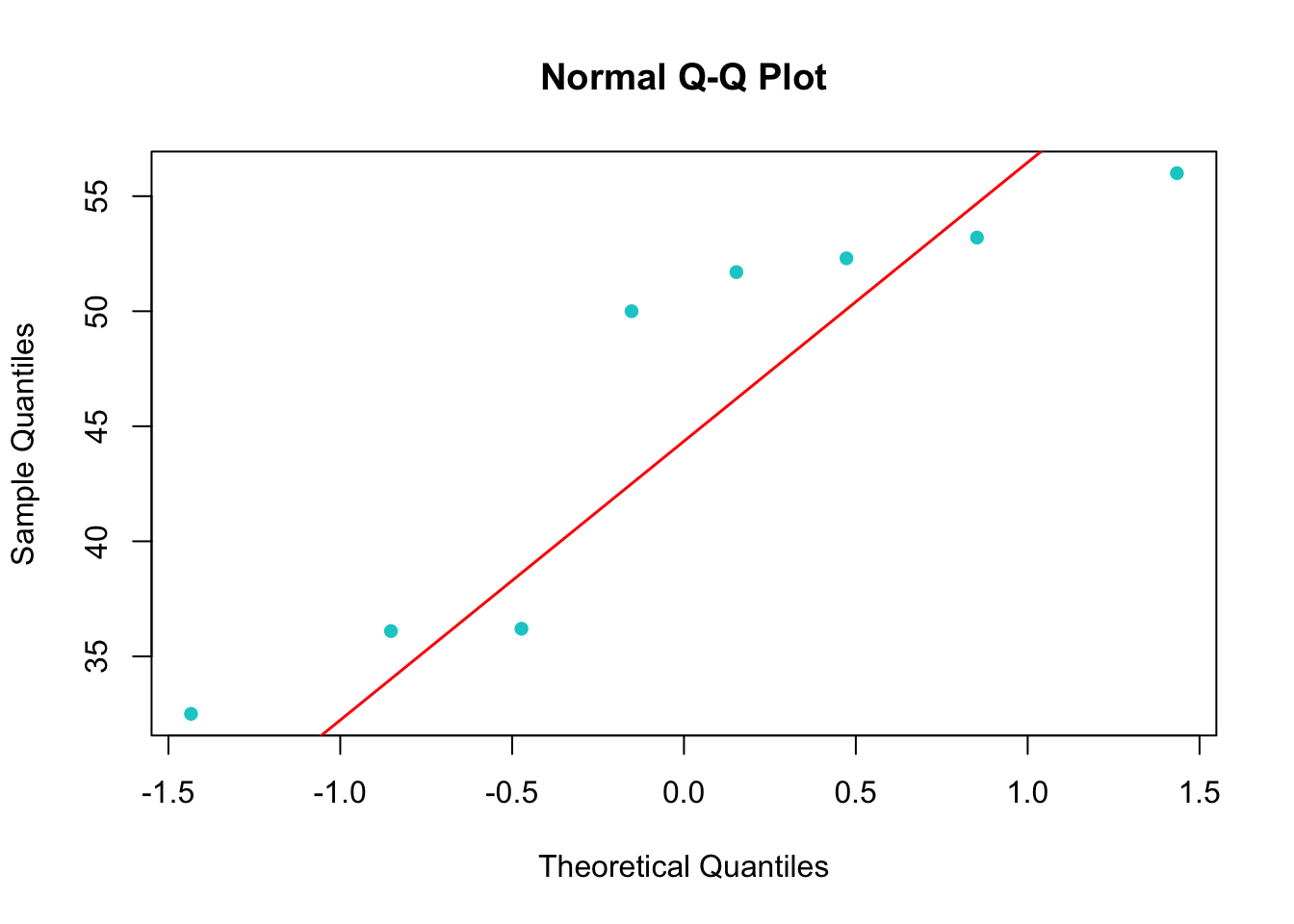

qqnorm(binding, pch = 16, col = "cyan3")
qqline(binding, col = "red", lwd = 1.5)

Version	Author	Date
e97ccaf	Paloma	2025-04-01

## Linear regression
mod <- lm(binding ~ weight)
summary(mod)


Call:
lm(formula = binding ~ weight)

Residuals:
     Min       1Q   Median       3Q      Max
-15.3218 -10.9401  -0.0469   6.8640  21.5852

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   96.860     30.175   3.210  0.00933 **
weight        -2.339      1.257  -1.861  0.09242 .
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 13.23 on 10 degrees of freedom
Multiple R-squared:  0.2572,    Adjusted R-squared:  0.1829
F-statistic: 3.462 on 1 and 10 DF,  p-value: 0.09242

plot(weight, binding,
     main = "Linear regression, weight 20 - 29.9 mg",
     xlab = "weight",
     ylab = "binding %",
     pch = 16,
     cex = 1,
     col = "darkgreen")

abline(mod, col = "red", lty = 'dashed')

Version	Author	Date
e97ccaf	Paloma	2025-04-01

# more than 30 mg

## Linear regression, by weight group
d<- data[c(data$Weight_mg > 29.9), ]
weight <- d$Weight_mg
binding <- d$Binding.Perc

# Q-Q Plot
qqnorm(binding, pch = 16, col = "cyan3")
qqline(binding, col = "red", lwd = 1.5)

Version	Author	Date
e97ccaf	Paloma	2025-04-01

## Linear regression
mod <- lm(binding ~ weight)
summary(mod)


Call:
lm(formula = binding ~ weight)

Residuals:
    Min      1Q  Median      3Q     Max
-12.830  -8.875   5.782   6.585   7.765

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  71.1761    49.2217   1.446    0.198
weight       -0.7449     1.4526  -0.513    0.626

Residual standard error: 9.92 on 6 degrees of freedom
Multiple R-squared:  0.04199,   Adjusted R-squared:  -0.1177
F-statistic: 0.263 on 1 and 6 DF,  p-value: 0.6264

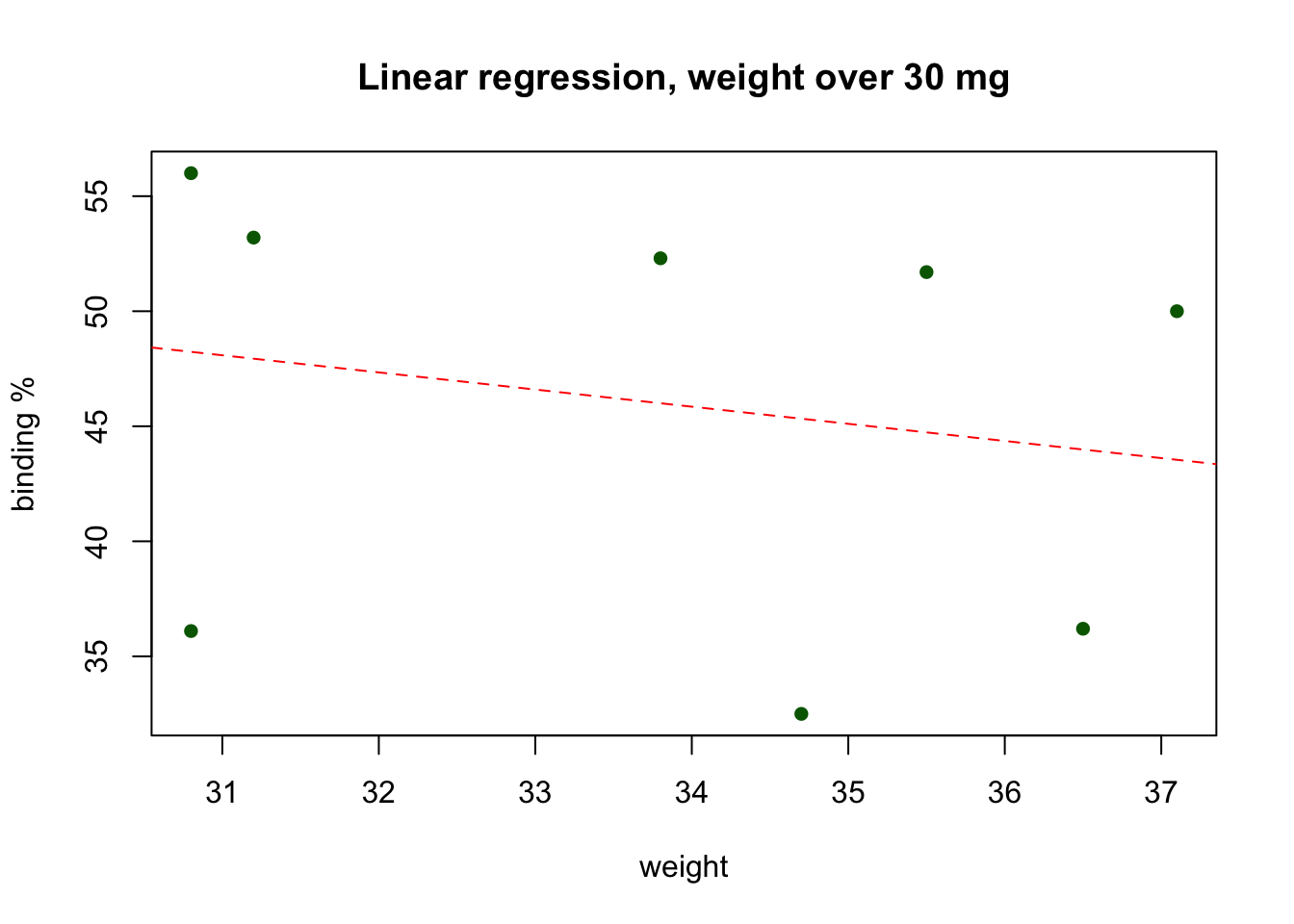

plot(weight, binding,
     main = "Linear regression, weight over 30 mg",
     xlab = "weight",
     ylab = "binding %",
     pch = 16,
     cex = 1,
     col = "darkgreen")

abline(mod, col = "red", lty = 'dashed')

Version	Author	Date
e97ccaf	Paloma	2025-04-01

Linear regression, by spike

## SPIKED
d<- data[c(data$Spike == 1), ]
weight <- d$Weight_mg
binding <- d$Binding.Perc

# Q-Q Plot

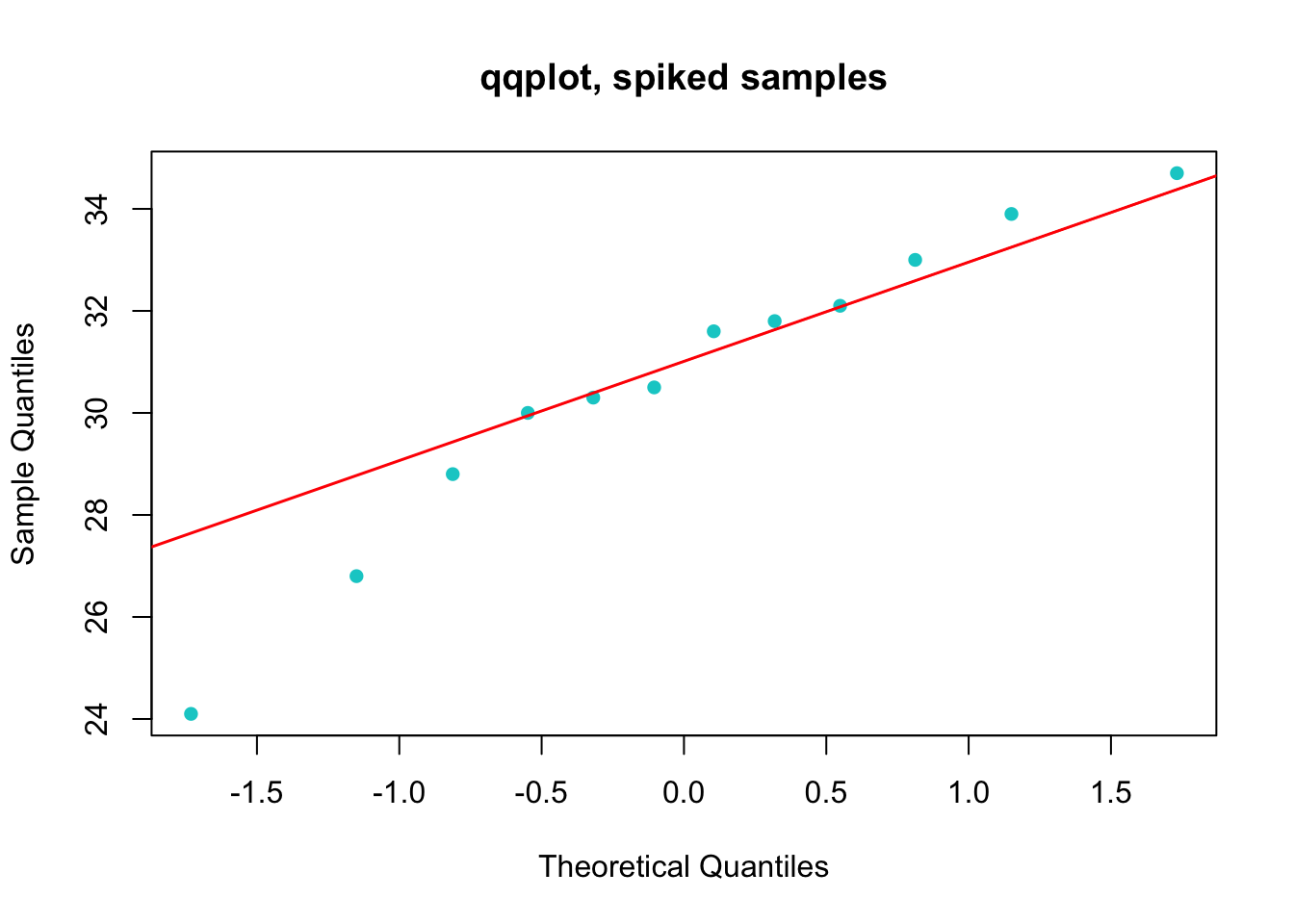

qqnorm(binding, pch = 16, col = "cyan3", main = "qqplot, spiked samples")
qqline(binding, col = "red", lwd = 1.5)

Version	Author	Date
e97ccaf	Paloma	2025-04-01

## Linear regression
mod <- lm(binding ~ weight)
summary(mod)


Call:
lm(formula = binding ~ weight)

Residuals:
    Min      1Q  Median      3Q     Max
-4.1104 -1.1097  0.2364  1.3247  3.4221

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  37.2842     2.3680  15.745 2.19e-08 ***
weight       -0.3252     0.1111  -2.927   0.0151 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 2.304 on 10 degrees of freedom
Multiple R-squared:  0.4613,    Adjusted R-squared:  0.4075
F-statistic: 8.564 on 1 and 10 DF,  p-value: 0.01513

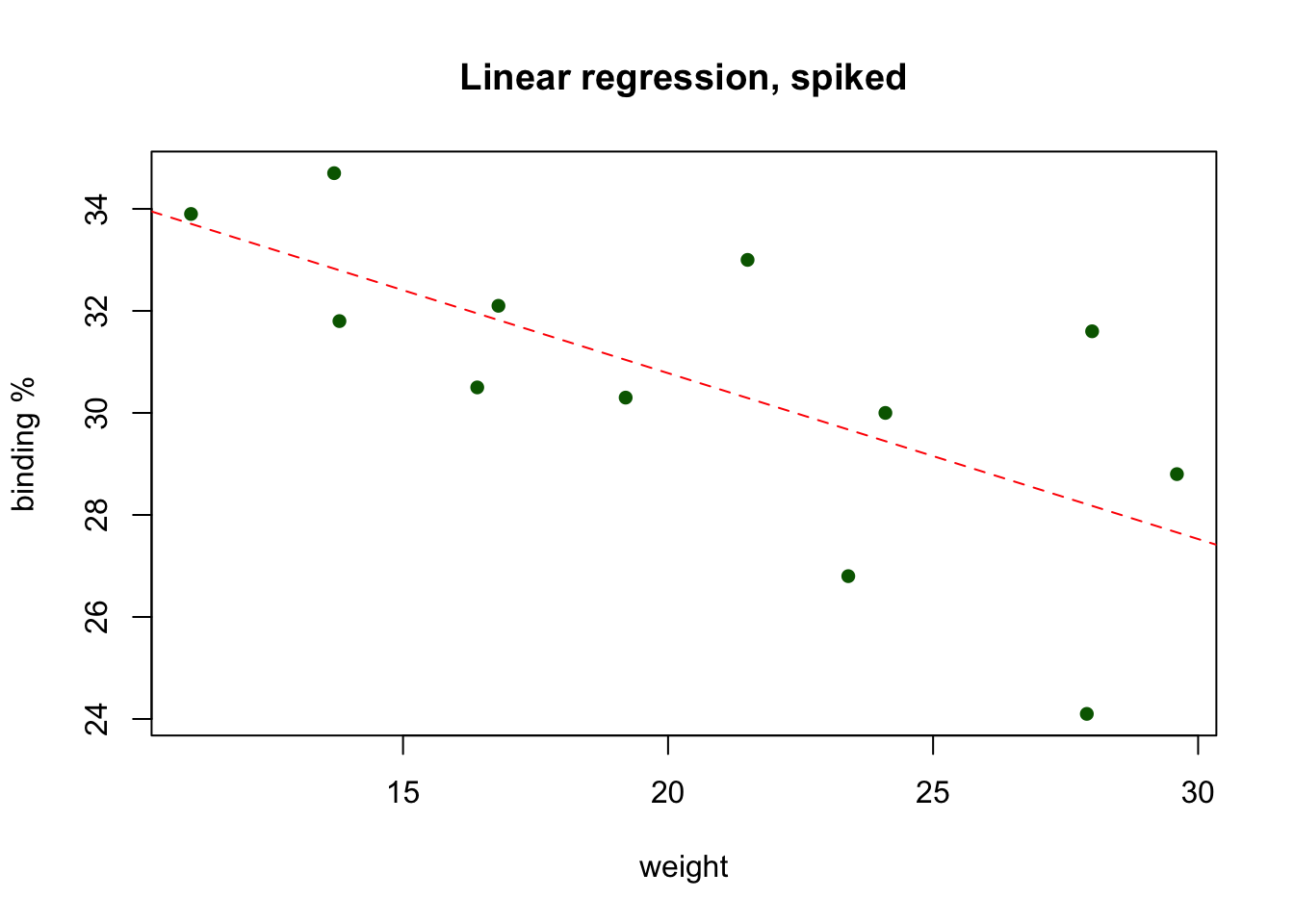

plot(weight, binding,
     main = "Linear regression, spiked",
     xlab = "weight",
     ylab = "binding %",
     pch = 16,
     cex = 1,
     col = "darkgreen")

abline(mod, col = "red", lty = 'dashed')

Version	Author	Date
e97ccaf	Paloma	2025-04-01

## Linear regression, by spike
## NO

d <- data[c(data$Spike == 0), ]
weight <- d$Weight_mg
binding <- d$Binding.Perc

# Q-Q Plot

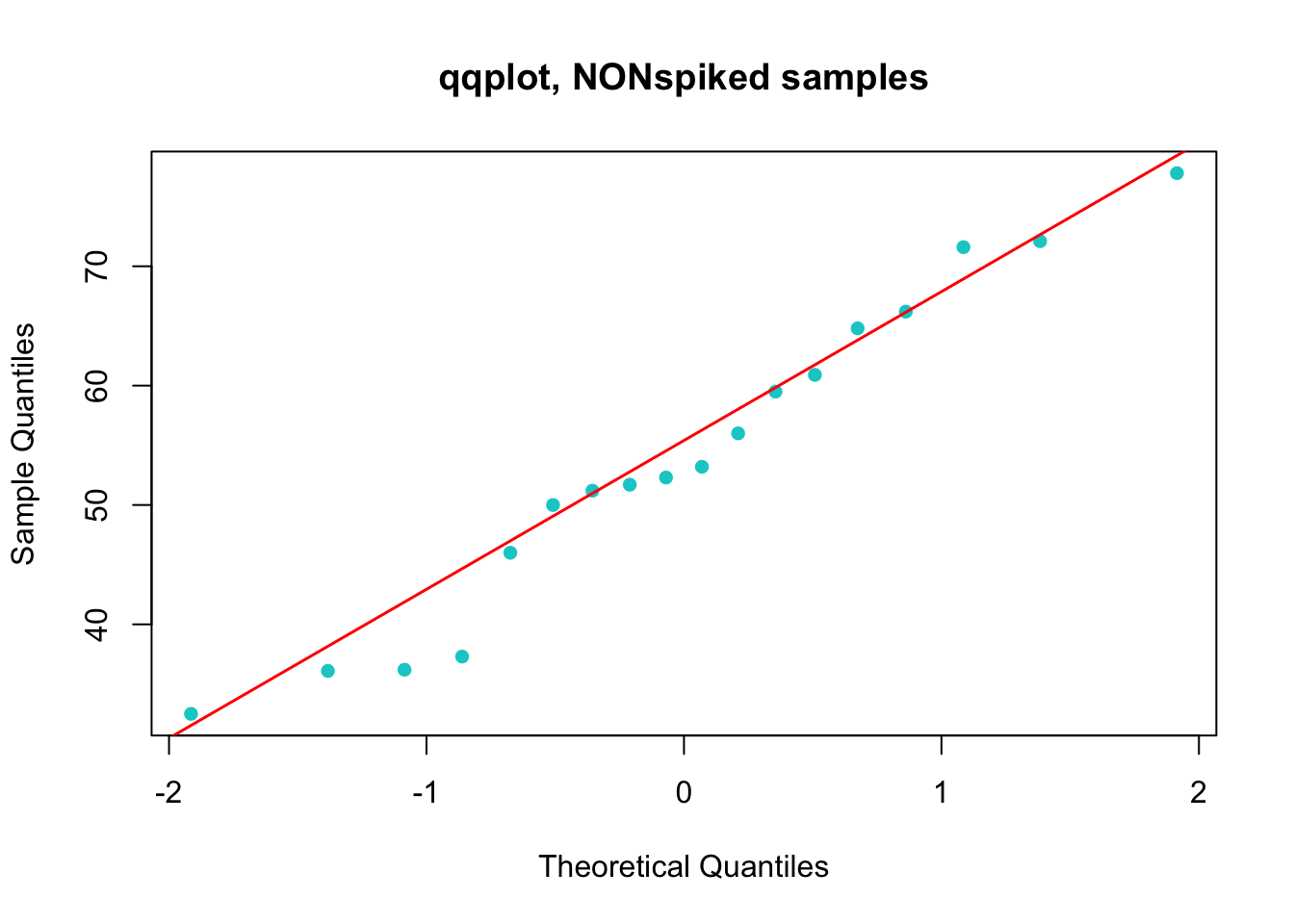

qqnorm(binding, pch = 16, col = "cyan3", main = "qqplot, NONspiked samples")
qqline(binding, col = "red", lwd = 1.5)

Version	Author	Date
e97ccaf	Paloma	2025-04-01

## Linear regression
mod <- lm(binding ~ weight)
summary(mod)


Call:
lm(formula = binding ~ weight)

Residuals:
    Min      1Q  Median      3Q     Max
-22.718  -7.360   5.027   7.309  12.492

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  81.8251     8.0270  10.194  2.1e-08 ***
weight       -1.0795     0.2991  -3.609  0.00235 **
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 10.21 on 16 degrees of freedom
Multiple R-squared:  0.4487,    Adjusted R-squared:  0.4143
F-statistic: 13.02 on 1 and 16 DF,  p-value: 0.002355

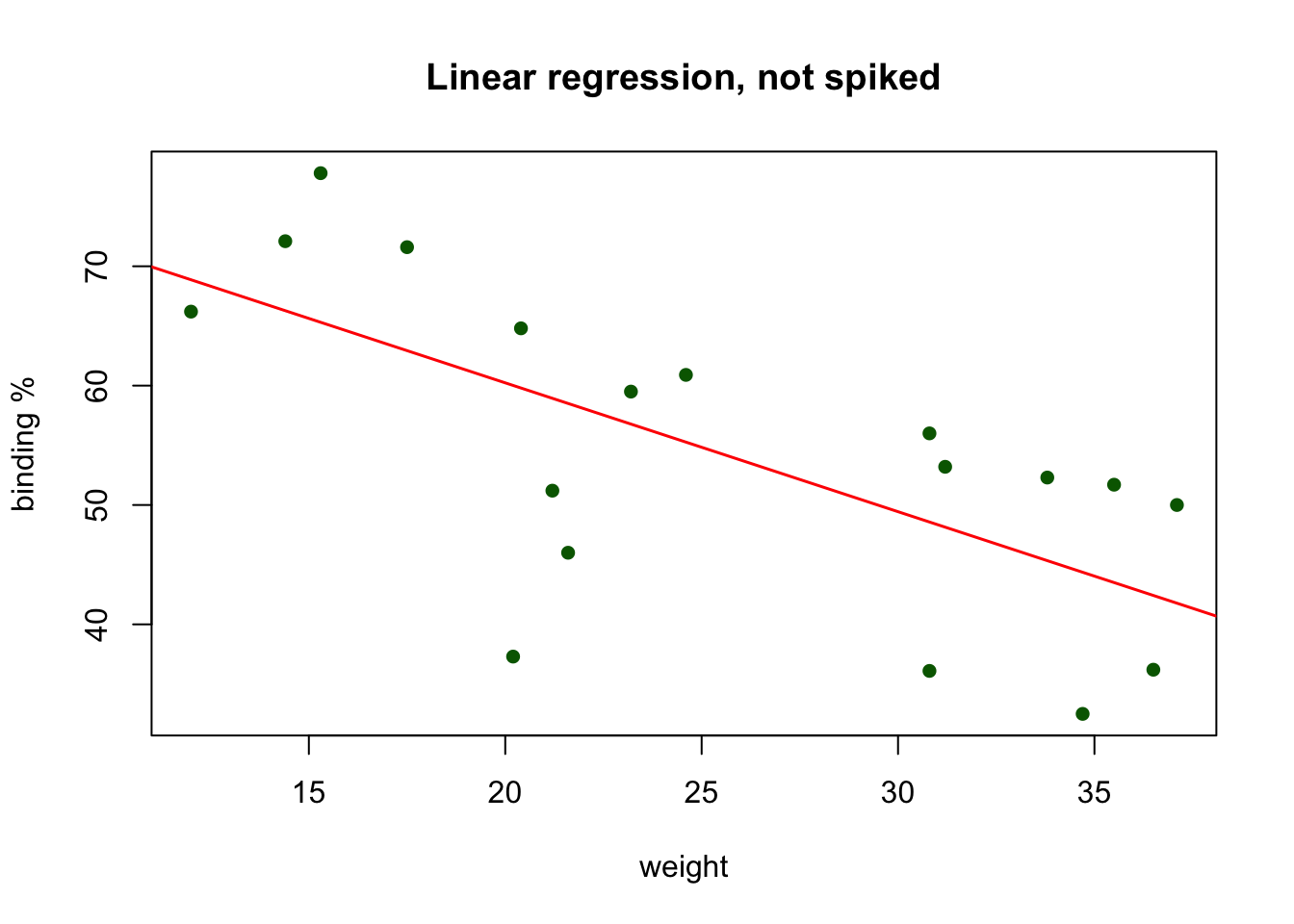

plot(weight, binding,
     main = "Linear regression, not spiked",
     xlab = "weight",
     ylab = "binding %",
     pch = 16,
     cex = 1,
     col = "darkgreen")

abline(mod, col = "red", lwd = 1.5)

Version	Author	Date
e97ccaf	Paloma	2025-04-01

Comparing models

#creating function to extract coeffs
extract_coefs <- function(model, model_name) {
# Extract summary of the model
  coef_summary <- summary(model)$coefficients

# Create a data frame with term names, estimates, and standard errors
  coef_df <- data.frame(
    term = rownames(coef_summary),
    estimate = coef_summary[, "Estimate"],
    std.error = coef_summary[, "Std. Error"],
    model = model_name  # Add the model name as a new column
  )

  # Return the data frame
  return(coef_df)
}

binding <- data$Binding.Perc
weight <- data$Weight_mg
spike <- data$Spike
buffer <- data$Buffer_nl

# model 1

m1 <- lm(binding ~ weight)
summary(m1)


Call:
lm(formula = binding ~ weight)

Residuals:
   Min     1Q Median     3Q    Max
-19.39 -14.46  -5.65  12.69  30.62

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  51.6739     9.2460   5.589 5.56e-06 ***
weight       -0.2934     0.3732  -0.786    0.438
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 15.77 on 28 degrees of freedom
Multiple R-squared:  0.0216,    Adjusted R-squared:  -0.01335
F-statistic: 0.618 on 1 and 28 DF,  p-value: 0.4384

confint(m1, level = 0.95)

                2.5 %     97.5 %
(Intercept) 32.734311 70.6134504
weight      -1.057979  0.4711297

# model 2

m2 <- lm(binding ~ spike)
summary(m2)


Call:
lm(formula = binding ~ spike)

Residuals:
     Min       1Q   Median       3Q      Max
-21.6889  -3.6222  -0.2333   3.8667  23.6111

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   54.189      2.490  21.765  < 2e-16 ***
spike        -23.556      3.937  -5.984 1.91e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 10.56 on 28 degrees of freedom
Multiple R-squared:  0.5612,    Adjusted R-squared:  0.5455
F-statistic: 35.81 on 1 and 28 DF,  p-value: 1.912e-06

confint(m2, level = 0.95)

                2.5 %    97.5 %
(Intercept)  49.08898  59.28880
spike       -31.61922 -15.49189

# model 3

m3 <- lm(binding ~ buffer)
summary(m3)


Call:
lm(formula = binding ~ buffer)

Residuals:
    Min      1Q  Median      3Q     Max
-19.165 -14.670  -3.835   9.970  31.515

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 38.25406    5.77579   6.623 3.48e-07 ***
buffer       0.03884    0.03004   1.293    0.207
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 15.49 on 28 degrees of freedom
Multiple R-squared:  0.05636,   Adjusted R-squared:  0.02266
F-statistic: 1.672 on 1 and 28 DF,  p-value: 0.2065

confint(m3, level = 0.95)

                  2.5 %     97.5 %
(Intercept) 26.42288169 50.0852393
buffer      -0.02268419  0.1003694

# model 4

m4 <- lm(binding ~ weight + spike)
summary(m4)


Call:
lm(formula = binding ~ weight + spike)

Residuals:
    Min      1Q  Median      3Q     Max
-21.621  -4.416   1.329   6.013  14.585

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  76.6215     5.7290  13.374 2.00e-13 ***
weight       -0.8763     0.2100  -4.172  0.00028 ***
spike       -28.0684     3.3078  -8.485 4.25e-09 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 8.388 on 27 degrees of freedom
Multiple R-squared:  0.7332,    Adjusted R-squared:  0.7134
F-statistic: 37.09 on 2 and 27 DF,  p-value: 1.795e-08

confint(m4, level = 0.95)

                 2.5 %      97.5 %
(Intercept)  64.866499  88.3764142
weight       -1.307243  -0.4453015
spike       -34.855427 -21.2812872

# model 5

m5 <- lm(binding ~ weight + buffer)
summary(m5)


Call:
lm(formula = binding ~ weight + buffer)

Residuals:
     Min       1Q   Median       3Q      Max
-20.5867 -13.8305   0.2964  10.4043  28.5410

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 46.61126    9.67968   4.815    5e-05 ***
weight      -0.40028    0.37261  -1.074    0.292
buffer       0.04520    0.03053   1.480    0.150
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 15.45 on 27 degrees of freedom
Multiple R-squared:  0.09504,   Adjusted R-squared:  0.02801
F-statistic: 1.418 on 2 and 27 DF,  p-value: 0.2597

confint(m5, level = 0.95)

                  2.5 %     97.5 %
(Intercept) 26.75019226 66.4723321
weight      -1.16481019  0.3642451
buffer      -0.01745052  0.1078448

# model 6

m6 <- lm(binding ~ spike + buffer)
summary(m6)


Call:
lm(formula = binding ~ spike + buffer)

Residuals:
    Min      1Q  Median      3Q     Max
-17.230  -5.022  -1.865   4.197  22.370

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept)  47.19577    3.94659  11.959 2.69e-12 ***
spike       -23.77849    3.69347  -6.438 6.73e-07 ***
buffer        0.04224    0.01922   2.198   0.0367 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 9.907 on 27 degrees of freedom
Multiple R-squared:  0.6278,    Adjusted R-squared:  0.6002
F-statistic: 22.77 on 2 and 27 DF,  p-value: 1.607e-06

confint(m6, level = 0.95)

                    2.5 %       97.5 %
(Intercept)  39.098031857  55.29350737
spike       -31.356858924 -16.20012221
buffer        0.002807951   0.08167268

# model 7

m7 <- lm(binding ~ weight + buffer + spike)
summary(m7)


Call:
lm(formula = binding ~ weight + buffer + spike)

Residuals:
     Min       1Q   Median       3Q      Max
-16.2258  -2.0491   0.4047   3.4737  12.5351

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept)  70.98564    4.39479  16.152 4.50e-15 ***
weight       -1.04123    0.15906  -6.546 6.11e-07 ***
buffer        0.05955    0.01232   4.833 5.22e-05 ***
spike       -29.23218    2.45833 -11.891 5.13e-12 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 6.204 on 26 degrees of freedom
Multiple R-squared:  0.8594,    Adjusted R-squared:  0.8432
F-statistic: 52.99 on 3 and 26 DF,  p-value: 3.261e-11

confint(m7, level = 0.95)

                   2.5 %       97.5 %
(Intercept)  61.95201200  80.01927215
weight       -1.36817295  -0.71428618
buffer        0.03422208   0.08487659
spike       -34.28534532 -24.17900665

# model 8

sp1 <- data[data$Spike == 1,]
sp0 <- data[data$Spike == 0,]

binding1 <- sp1$Binding.Perc
weight1 <- sp1$Weight_mg
spike1 <- sp1$Spike
buffer1 <- sp1$Buffer_nl

m8 <- lm(binding1 ~  buffer1 + weight1)
summary(m8)


Call:
lm(formula = binding1 ~ buffer1 + weight1)

Residuals:
   Min     1Q Median     3Q    Max
-2.343 -1.448 -0.262  1.241  2.886

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept) 36.265393   2.179575  16.639 4.57e-08 ***
buffer1      0.012459   0.006592   1.890  0.09133 .
weight1     -0.379489   0.103187  -3.678  0.00509 **
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 2.055 on 9 degrees of freedom
Multiple R-squared:  0.6144,    Adjusted R-squared:  0.5287
F-statistic:  7.17 on 2 and 9 DF,  p-value: 0.01373

# model 9
binding0 <- sp0$Binding.Perc
weight0 <- sp0$Weight_mg
spike0 <- sp0$Spike
buffer0 <- sp0$Buffer_nl

m9 <- lm(binding0 ~  buffer0 + weight0)
summary(m9)


Call:
lm(formula = binding0 ~ buffer0 + weight0)

Residuals:
     Min       1Q   Median       3Q      Max
-14.6241  -2.2477   0.1961   3.0228  12.8202

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 72.36202    4.87984  14.829 2.28e-10 ***
buffer0      0.08634    0.01487   5.807 3.45e-05 ***
weight0     -1.26822    0.17446  -7.269 2.74e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 5.851 on 15 degrees of freedom
Multiple R-squared:  0.8303,    Adjusted R-squared:  0.8077
F-statistic: 36.69 on 2 and 15 DF,  p-value: 1.67e-06

coef_df1 <- extract_coefs(m1, "Model 1")
coef_df2 <- extract_coefs(m2, "Model 2")
coef_df3 <- extract_coefs(m3, "Model 3")
coef_df4 <- extract_coefs(m4, "Model 4")
coef_df5 <- extract_coefs(m5, "Model 5")
coef_df6 <- extract_coefs(m6, "Model 6")
coef_df7 <- extract_coefs(m7, "Model 7")
coef_df8 <- extract_coefs(m8, "Model 8")
coef_df9 <- extract_coefs(m9, "Model 9")

#Combine the data frames for plotting
coef_df <- rbind(coef_df1, coef_df2, coef_df3, coef_df4)

Plot regression coefs

ggplot(coef_df, aes(x = term, y = estimate, color = model)) +
  geom_point(position = position_dodge(width = 0.5)) +  # Points for the estimates
  geom_errorbar(aes(ymin = estimate - 1.96 * std.error, ymax = estimate + 1.96 * std.error),
                position = position_dodge(width = 0.5), width = 0.2) +  # Error bars for confidence intervals
  theme_minimal() +
  coord_flip() +  # Flip the coordinates for better readability
  labs(title = "Coefficient Plot for Multiple Models",
       x = "Terms",
       y = "Estimates") +
  geom_hline(yintercept = 0, color = "gray", linetype = "dashed") +  # Gray line at zero
  theme(legend.position = "bottom")

Version	Author	Date
e97ccaf	Paloma	2025-04-01

Plot model 1 to 4

ggplot(coef_df, aes(x = term, y = estimate, color = model)) +
  geom_point(position = position_dodge(width = 4)) +  # Points for the estimates
  geom_errorbar(aes(ymin = estimate - 1.96 * std.error, ymax = estimate + 1.96 * std.error),
                position = position_dodge(width = 0.85), width = 1) +  # Error bars for confidence intervals
  theme_minimal() +
  coord_flip() +  # Flip the coordinates for better readability
  facet_wrap(~ model, ncol = 1) +  # One model per line
  labs(title = "Coefficient Plot for Models 1-4",
       x = "Terms",
       y = "Estimates") +
  theme(legend.position = "none") +
  geom_hline(yintercept = 0, color = "gray", linetype = "dashed") +  # Gray line at zero
  expand_limits(y = c(-58, 58)) +
  theme(
    axis.text.x = element_text(size = 12),        # X-axis text size
    axis.text.y = element_text(size = 12),        # Y-axis text size
    axis.title.x = element_text(size = 14),       # X-axis title size
    axis.title.y = element_text(size = 14),       # Y-axis title size
    plot.title = element_text(size = 16, hjust = 0.5),  # Plot title size and centering
    strip.text = element_text(size = 14)          # Facet label text size
  )

Warning: `position_dodge()` requires non-overlapping x intervals.
`position_dodge()` requires non-overlapping x intervals.
`position_dodge()` requires non-overlapping x intervals.
`position_dodge()` requires non-overlapping x intervals.

Version	Author	Date
e97ccaf	Paloma	2025-04-01

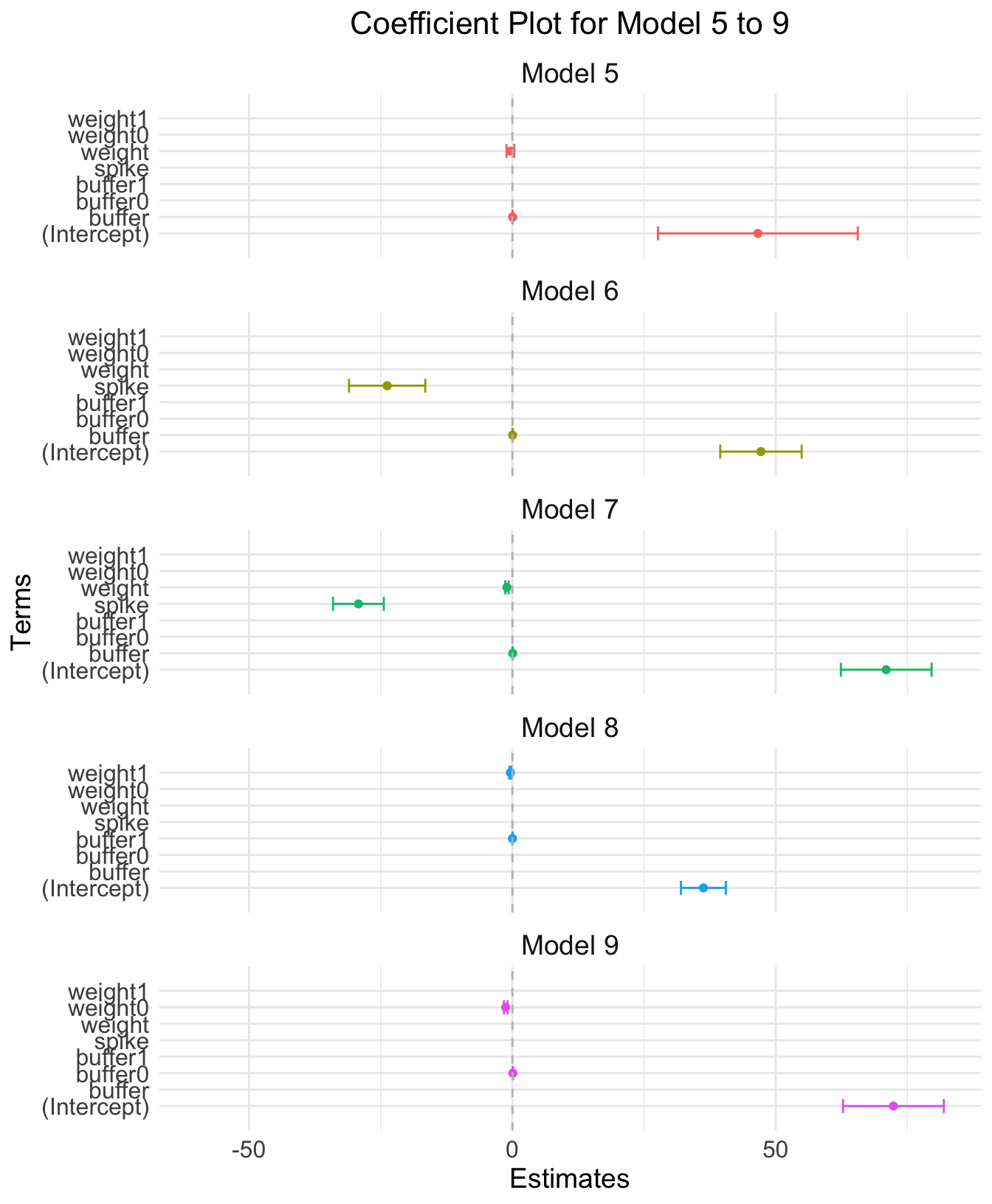

Plot model 5 to 9

# Combine the data frames for plotting
coef_df <- rbind(coef_df5, coef_df6, coef_df7, coef_df8,coef_df9)

ggplot(coef_df, aes(x = term, y = estimate, color = model)) +
  geom_point(position = position_dodge(width = 3)) +  # Points for the estimates
  geom_errorbar(aes(ymin = estimate - 1.96 * std.error, ymax = estimate + 1.96 * std.error),
                position = position_dodge(width = 0.9), width = 0.85) +  # Error bars for confidence intervals
  theme_minimal() +
  coord_flip() +  # Flip the coordinates for better readability
  facet_wrap(~ model, ncol = 1) +  # One model per line
  labs(title = "Coefficient Plot for Model 5 to 9",
       x = "Terms",
       y = "Estimates") +
  theme(legend.position = "none") +
  geom_hline(yintercept = 0, color = "gray", linetype = "dashed") +  # Gray line at zero
  expand_limits(y = c(-60, 60)) +
  theme(
    axis.text.x = element_text(size = 12),        # X-axis text size
    axis.text.y = element_text(size = 12),        # Y-axis text size
    axis.title.x = element_text(size = 14),       # X-axis title size
    axis.title.y = element_text(size = 14),       # Y-axis title size
    plot.title = element_text(size = 16, hjust = 0.5),  # Plot title size and centering
    strip.text = element_text(size = 14)          # Facet label text size
  )

Warning: `position_dodge()` requires non-overlapping x intervals.
`position_dodge()` requires non-overlapping x intervals.
`position_dodge()` requires non-overlapping x intervals.
`position_dodge()` requires non-overlapping x intervals.

Version	Author	Date
e97ccaf	Paloma	2025-04-01

Summarize info multiple models

model_names <- paste("m", 1:9, sep="")
r_values <- 1:9
all_models <- list(m1, m2, m3, m4, m5, m6, m7, m8, m9)
model_info <- c("weight", "spike", "buffer", "weight + spike", "weight + buffer", "spike + buffer", "spike + buffer + weight", "buffer + weight, spiked only","buffer + weight, NOT spiked only")
sum_models <- as.data.frame(r_values, row.names=model_names)
sum_models$res_std_error <- 1:length(model_names)
sum_models$info <- model_info

for (i in 1:length(model_names)) {
    sum_models$r_values[i]      <- summary(all_models[[i]])$adj.r.squared
    sum_models$res_std_error[i] <- summary(all_models[[i]])$sigma
}

kable(sum_models[order(sum_models$r_values, decreasing = TRUE), ])

	r_values	res_std_error	info
m7	0.8432246	6.203728	spike + buffer + weight
m9	0.8076695	5.850626	buffer + weight, NOT spiked only
m4	0.7134063	8.387781	weight + spike
m6	0.6001972	9.906874	spike + buffer
m2	0.5454965	10.562881	spike
m8	0.5287000	2.054609	buffer + weight, spiked only
m5	0.0280065	15.447046	weight + buffer
m3	0.0226583	15.489485	buffer
m1	-0.0133472	15.772222	weight

Comparing models using Akakike’s information criteria

# computing bias-adjusted version of AIC (AICc) Akakaike's information criteria table
AICc_compare <-AICtab(m1, m2, m3, m4, m5, m6, m7, m8, m9,
        base = TRUE,
        weights = TRUE,
        logLik  = TRUE,
        #indicate number of observations
        nobs = 30)
kable(AICc_compare)

	logLik	AIC	dLogLik	dAIC	df	weight
m8	-23.94220	55.8844	100.3385734	0.00000	4	1
m9	-55.69788	119.3958	68.5828959	63.51136	4	0
m7	-95.17615	200.3523	29.1046184	144.46791	5	0
m4	-104.79103	217.5821	19.4897423	161.69766	4	0
m6	-109.78461	227.5692	14.4961574	171.68483	4	0
m2	-112.25364	230.5073	12.0271289	174.62289	3	0
m3	-123.73810	253.4762	0.5426679	197.59181	3	0
m5	-123.11028	254.2206	1.1704906	198.33617	4	0
m1	-124.28077	254.5615	0.0000000	198.67715	3	0

# Coef table
coeftab(m1, m2, m3, m4, m5, m6, m7, m8, m9) -> coeftabs
kable(coeftabs)

	(Intercept)	weight	spike	buffer	buffer1	weight1	buffer0	weight0
m1	51.67388	-0.2934245	NA	NA	NA	NA	NA	NA
m2	54.18889	NA	-23.55556	NA	NA	NA	NA	NA
m3	38.25406	NA	NA	0.0388426	NA	NA	NA	NA
m4	76.62146	-0.8762722	-28.06836	NA	NA	NA	NA	NA
m5	46.61126	-0.4002825	NA	0.0451972	NA	NA	NA	NA
m6	47.19577	NA	-23.77849	0.0422403	NA	NA	NA	NA
m7	70.98564	-1.0412296	-29.23218	0.0595493	NA	NA	NA	NA
m8	36.26539	NA	NA	NA	0.0124595	-0.3794893	NA	NA
m9	72.36202	NA	NA	NA	NA	NA	0.0863352	-1.268219

par(mfrow = c(3, 3))

plot(m1, which = 1)
plot(m2, which = 1, main = "m2")
plot(m3, which = 1, main = "m3")
plot(m4, which = 1, main = "m4")
plot(m5, which = 1, main = "m5")
plot(m6, which = 1, main = "m6")
plot(m7, which = 1, main = "m7")
plot(m8, which = 1, main = "m8")
plot(m9, which = 1, main = "m9")

Version	Author	Date
e97ccaf	Paloma	2025-04-01

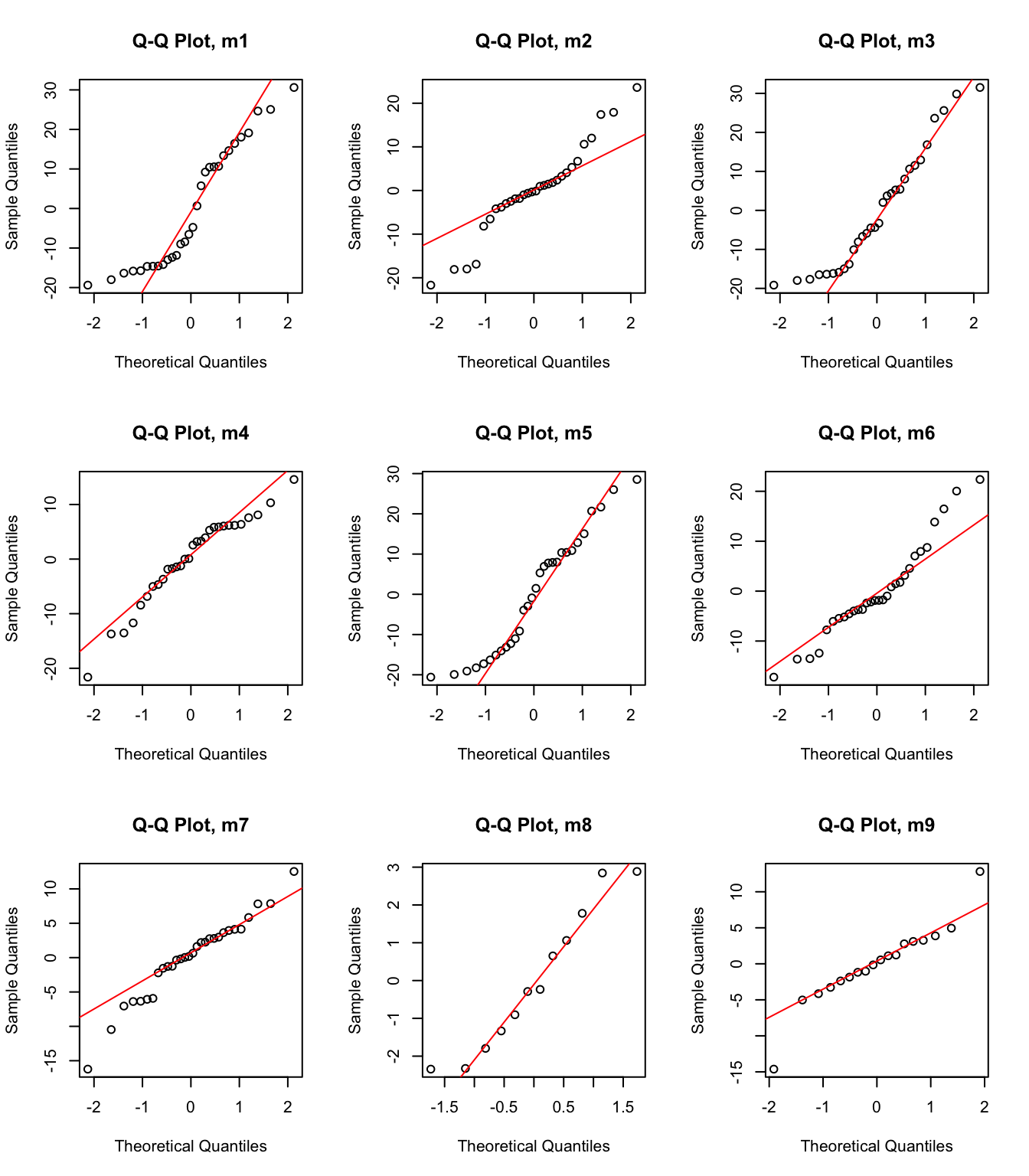

model <- list(m1, m2, m3, m4, m5, m6, m7, m8, m9)

par(mfrow = c(3, 3))

for (i in 1:length(model)) {
 #  Create a Q-Q plot for the residuals of the i-th model
  qqnorm(residuals(model[[i]]), main = paste("Q-Q Plot, m", i, sep = ""))
  qqline(residuals(model[[i]]), col = "red")
}

Version	Author	Date
e97ccaf	Paloma	2025-04-01

Model 7 has the highest weight, a measure of certainty in the model. However, we need to consider that the distribution of the data is not normal. Perhaps I should try using other distributions (binom, posson, )

#scale variable

d2 <- data
d2$y <- data$Binding.Perc/100

nll_beta <- function(mu, phi) {
  a <- mu * phi
  b <- (1 - mu) * phi
  -sum(dbeta(d2$y, a, b, log = TRUE))
}

# Fit models using mle2

fit <- mle2(nll_beta, start = list(mu = 0.5, phi = 1), data = d2)

Warning in dbeta(d2$y, a, b, log = TRUE): NaNs produced
Warning in dbeta(d2$y, a, b, log = TRUE): NaNs produced
Warning in dbeta(d2$y, a, b, log = TRUE): NaNs produced
Warning in dbeta(d2$y, a, b, log = TRUE): NaNs produced
Warning in dbeta(d2$y, a, b, log = TRUE): NaNs produced

summary(fit)

Maximum likelihood estimation

Call:
mle2(minuslogl = nll_beta, start = list(mu = 0.5, phi = 1), data = d2)

Coefficients:
     Estimate Std. Error z value     Pr(z)
mu   0.450562   0.027216  16.555 < 2.2e-16 ***
phi 10.074474   2.483221   4.057  4.97e-05 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

-2 log L: -29.41959

m0n <- mle2(d2$y ~ dnorm(mean = a, sd = sd(d2$y)), start = list(a = mean(d2$y)), data = d2)

# percent cover as predictor, use normal distribution
mcn <- mle2(d2$y ~ dnorm(mean = a + b * d2$Weight_mg, sd = sd(d2$y)), start = list(a = mean(d2$y), b = 0, s = sd(d2$y)), data = d2)

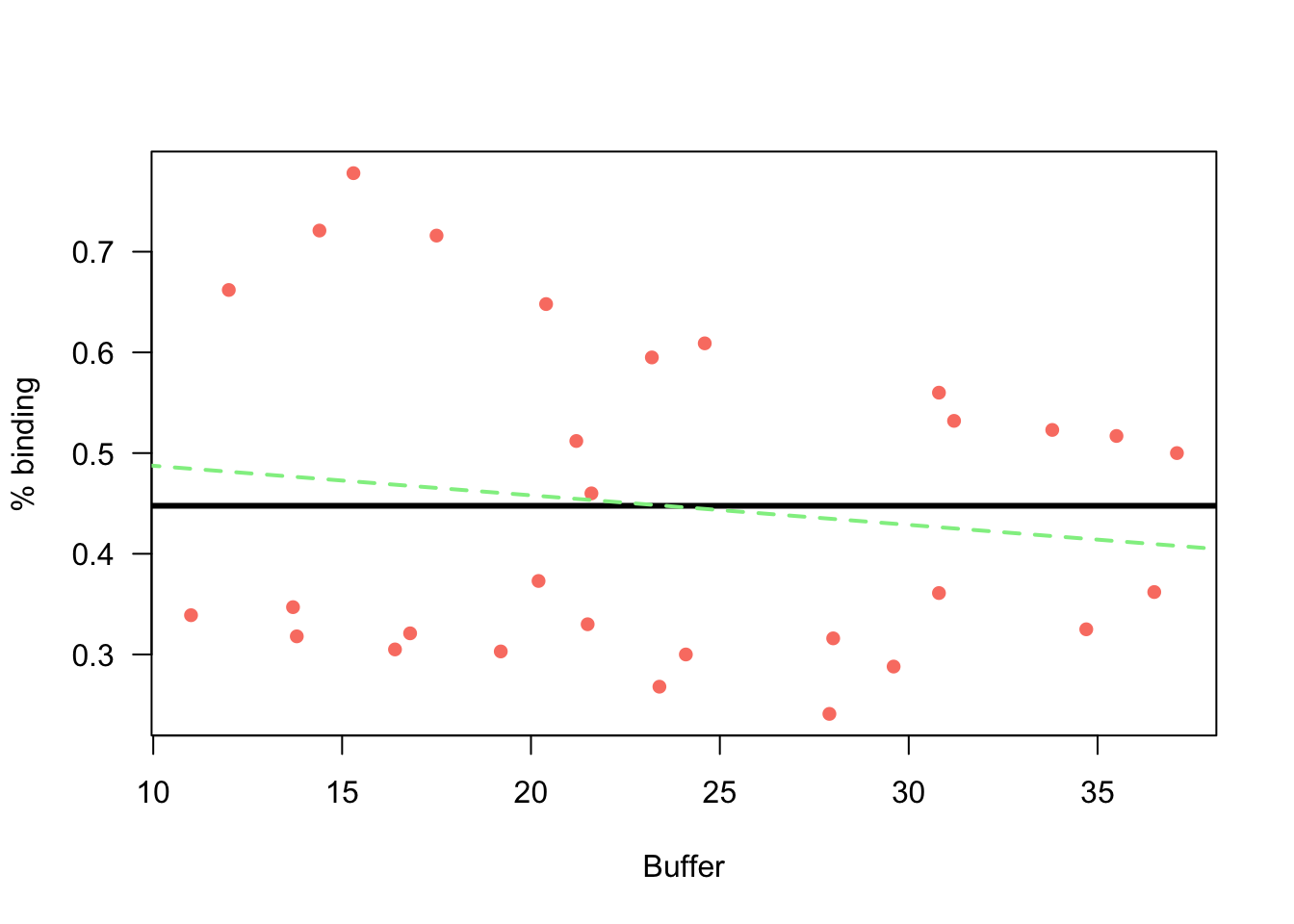

# scatter plot

plot(d2$y ~ d2$Weight_mg,
     xlab = "Buffer",
     ylab = "% binding",
     col = "salmon",
     pch = 16,
     las = 1)

#m0n
k <-coef(m0n)
curve(k[1] + 0 * x,
      from = 0, to = 100,
      add=T, lwd = 3,
      col = "black")

#mcn
k <-coef(mcn)
curve(k[1] + k[2] * x,
      from = 0, to = 100,
      add=T, lwd = 2,
      col = "lightgreen",
      lty = "dashed")

Version	Author	Date
e97ccaf	Paloma	2025-04-01

Finding optimal parameters using model 7

The goal is to run essays that result in a 50% binding.

# choose one model (m7: buffer + weight + spike)
coef <- coef(m7)

# Set target binding
target_binding <- 50

# FUNCTION to Solve for weight, assuming spike = 0
# 50% - intercept - (buffer1 * 1) - (spike * 0) / weight

solve_for_weight <- function(dilution_value, spike_value = 0) {
  (target_binding - coef[1] - coef[3] * dilution_value - coef[4] * spike_value) / coef[2]
}

# Find the weight that gives 50% binding whenspike is 0
# dilution = 250
optimal_weight <- solve_for_weight(dilution_value = 1)
optimal_weight

(Intercept)
   20.21187

# dilution = 60
optimal_weight <- solve_for_weight(dilution_value = 0)
optimal_weight

(Intercept)
   20.15467

# Find the weight that gives 50% binding when spike is 1
# dilution = 250
optimal_weight <- solve_for_weight(dilution_value = 1, spike_value = 1)
optimal_weight

(Intercept)
  -7.862805

# dilution = 60
optimal_weight <- solve_for_weight(dilution_value = 0, spike_value = 1)
optimal_weight

(Intercept)
  -7.919996

#Work in progress after this line

sessionInfo()

R version 4.5.0 (2025-04-11)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.4.1

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.1

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: America/Detroit
tzcode source: internal

attached base packages:
[1] stats4    stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] dplyr_1.1.4        bbmle_1.0.25.1     arm_1.14-4         lme4_1.1-37
 [5] Matrix_1.7-3       MASS_7.3-65        coefplot_1.2.8     RColorBrewer_1.1-3
 [9] ggplot2_3.5.2      knitr_1.50

loaded via a namespace (and not attached):
 [1] gtable_0.3.6        xfun_0.52           bslib_0.9.0
 [4] lattice_0.22-6      numDeriv_2016.8-1.1 vctrs_0.6.5
 [7] tools_4.5.0         Rdpack_2.6.4        generics_0.1.3
[10] tibble_3.2.1        pkgconfig_2.0.3     lifecycle_1.0.4
[13] farver_2.1.2        compiler_4.5.0      stringr_1.5.1
[16] git2r_0.36.2        munsell_0.5.1       httpuv_1.6.16
[19] htmltools_0.5.8.1   sass_0.4.10         yaml_2.3.10
[22] later_1.4.2         pillar_1.10.2       nloptr_2.2.1
[25] jquerylib_0.1.4     whisker_0.4.1       cachem_1.1.0
[28] reformulas_0.4.0    boot_1.3-31         abind_1.4-8
[31] useful_1.2.6.1      nlme_3.1-168        tidyselect_1.2.1
[34] bdsmatrix_1.3-7     digest_0.6.37       mvtnorm_1.3-3
[37] stringi_1.8.7       reshape2_1.4.4      labeling_0.4.3
[40] splines_4.5.0       rprojroot_2.0.4     fastmap_1.2.0
[43] grid_4.5.0          colorspace_2.1-1    cli_3.6.4
[46] magrittr_2.0.3      withr_3.0.2         scales_1.3.0
[49] promises_1.3.2      rmarkdown_2.29      workflowr_1.7.1
[52] coda_0.19-4.1       evaluate_1.0.3      rbibutils_2.3
[55] mgcv_1.9-1          rlang_1.1.6         Rcpp_1.0.14
[58] glue_1.8.0          rstudioapi_0.17.1   minqa_1.2.8
[61] jsonlite_2.0.0      R6_2.6.1            plyr_1.8.9
[64] fs_1.6.6

Analysis raw values, test3

Paloma

2024-10-16
